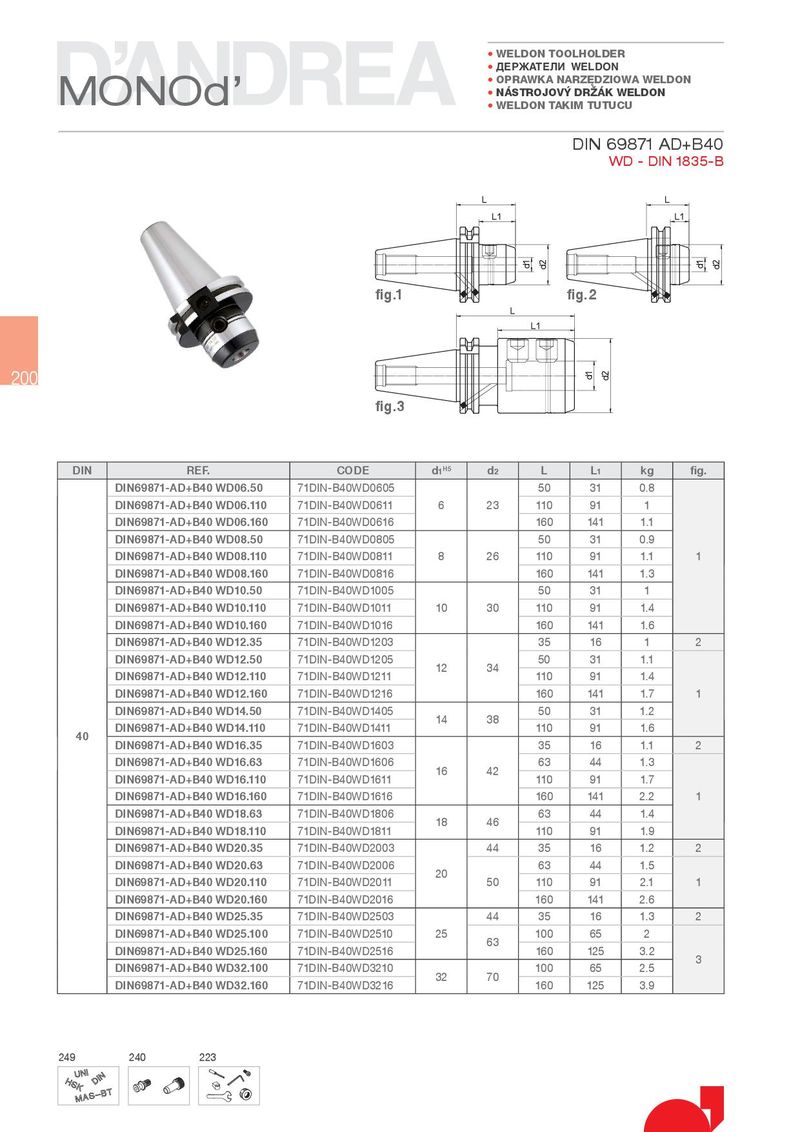

MONOd’ OPRAWKA NARZ}DZIOWA WELDON
- WELDON TAKIM TUTUCU
DIN 69871 AD+B40
WD - DIN 1835-B
fig.1 fig.2
200
fig.3
| DIN REF. | CODE | d1H5 | d2 | L | L1 | kg | fig. |
| DIN69871-AD+B40 WD06.50 | 71DIN-B40WD0605 | 50 | 31 | 0.8 | |||
| DIN69871-AD+B40 WD06.110 | 71DIN-B40WD0611 | 6 | 23 | 110 | 91 | 1 | |
| DIN69871-AD+B40 WD06.160 | 71DIN-B40WD0616 | 160 | 141 | 1.1 | |||
| DIN69871-AD+B40 WD08.50 | 71DIN-B40WD0805 | 50 | 31 | 0.9 | |||
| DIN69871-AD+B40 WD08.110 | 71DIN-B40WD0811 | 8 | 26 | 110 | 91 | 1.1 | 1 |
| DIN69871-AD+B40 WD08.160 | 71DIN-B40WD0816 | 160 | 141 | 1.3 | |||
| DIN69871-AD+B40 WD10.50 | 71DIN-B40WD1005 | 50 | 31 | 1 | |||
| DIN69871-AD+B40 WD10.110 | 71DIN-B40WD1011 | 10 | 30 | 110 | 91 | 1.4 | |
| DIN69871-AD+B40 WD10.160 | 71DIN-B40WD1016 | 160 | 141 | 1.6 | |||
| DIN69871-AD+B40 WD12.35 | 71DIN-B40WD1203 | 35 | 16 | 1 | 2 | ||
| DIN69871-AD+B40 WD12.50 | 71DIN-B40WD1205 | 12 | 34 | 50 | 31 | 1.1 | |
| DIN69871-AD+B40 WD12.110 | 71DIN-B40WD1211 | 110 | 91 | 1.4 | |||
| DIN69871-AD+B40 WD12.160 | 71DIN-B40WD1216 | 160 | 141 | 1.7 | 1 | ||
| DIN69871-AD+B40 WD14.50 | 71DIN-B40WD1405 | 14 | 38 | 50 | 31 | 1.2 | |
| 40 DIN69871-AD+B40 WD14.110 | 71DIN-B40WD1411 | 110 | 91 | 1.6 | |||
| DIN69871-AD+B40 WD16.35 | 71DIN-B40WD1603 | 35 | 16 | 1.1 | 2 | ||
| DIN69871-AD+B40 WD16.63 | 71DIN-B40WD1606 | 16 | 42 | 63 | 44 | 1.3 | |
| DIN69871-AD+B40 WD16.110 | 71DIN-B40WD1611 | 110 | 91 | 1.7 | |||
| DIN69871-AD+B40 WD16.160 | 71DIN-B40WD1616 | 160 | 141 | 2.2 | 1 | ||
| DIN69871-AD+B40 WD18.63 | 71DIN-B40WD1806 | 18 | 46 | 63 | 44 | 1.4 | |
| DIN69871-AD+B40 WD18.110 | 71DIN-B40WD1811 | 110 | 91 | 1.9 | |||
| DIN69871-AD+B40 WD20.35 | 71DIN-B40WD2003 | 44 | 35 | 16 | 1.2 | 2 | |
| DIN69871-AD+B40 WD20.63 | 71DIN-B40WD2006 | 20 | 63 | 44 | 1.5 | ||
| DIN69871-AD+B40 WD20.110 | 71DIN-B40WD2011 | 50 | 110 | 91 | 2.1 | 1 | |
| DIN69871-AD+B40 WD20.160 | 71DIN-B40WD2016 | 160 | 141 | 2.6 | |||
| DIN69871-AD+B40 WD25.35 | 71DIN-B40WD2503 | 44 | 35 | 16 | 1.3 | 2 | |
| DIN69871-AD+B40 WD25.100 | 71DIN-B40WD2510 | 25 | 63 | 100 | 65 | 2 | |
| DIN69871-AD+B40 WD25.160 | 71DIN-B40WD2516 | 160 | 125 | 3.2 | 3 | ||
| DIN69871-AD+B40 WD32.100 | 71DIN-B40WD3210 | 32 | 70 | 100 | 65 | 2.5 | |
| DIN69871-AD+B40 WD32.160 | 71DIN-B40WD3216 | 160 | 125 | 3.9 |
