Общий каталог D'andrea 2022

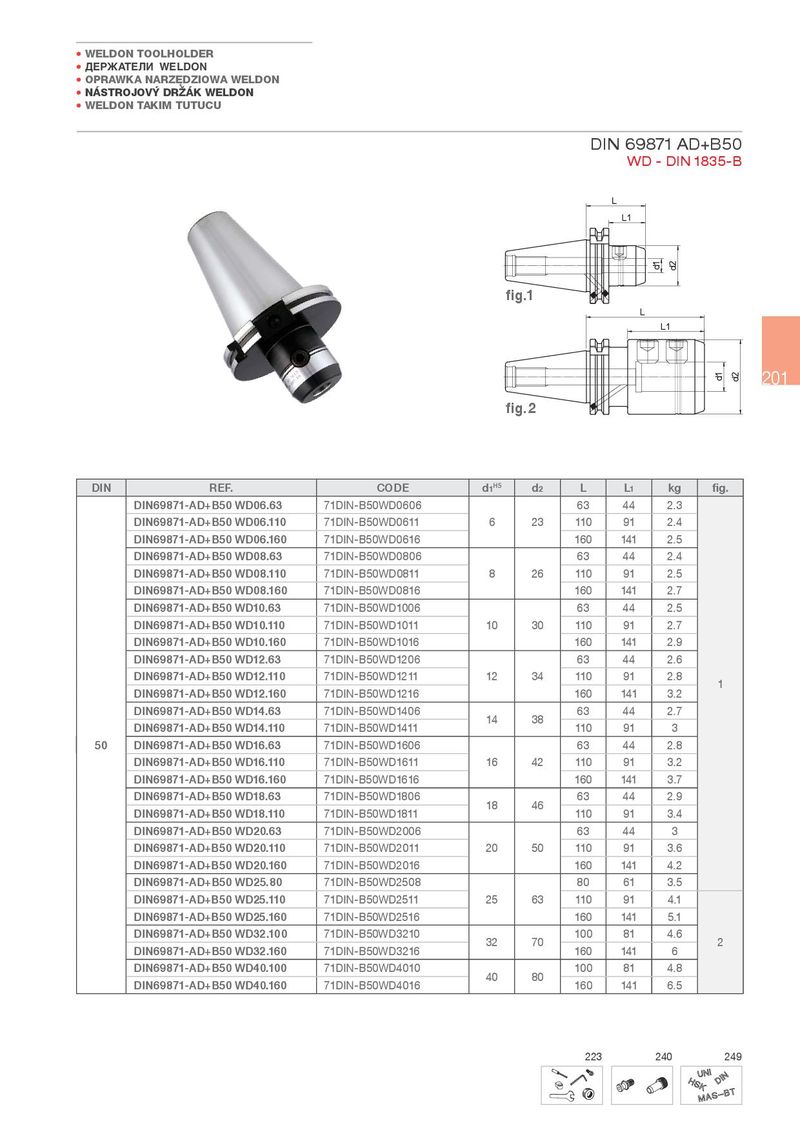

- WELDON TAKIM TUTUCU
DIN 69871 AD+B50
WD - DIN 1835-B
fig.1
201
fig.2
| DIN REF. | CODE | d1H5 | d2 | L | L1 | kg | fig. |
| DIN69871-AD+B50 WD06.63 | 71DIN-B50WD0606 | 63 | 44 | 2.3 | |||
| DIN69871-AD+B50 WD06.110 | 71DIN-B50WD0611 | 6 | 23 | 110 | 91 | 2.4 | |
| DIN69871-AD+B50 WD06.160 | 71DIN-B50WD0616 | 160 | 141 | 2.5 | |||
| DIN69871-AD+B50 WD08.63 | 71DIN-B50WD0806 | 63 | 44 | 2.4 | |||
| DIN69871-AD+B50 WD08.110 | 71DIN-B50WD0811 | 8 | 26 | 110 | 91 | 2.5 | |
| DIN69871-AD+B50 WD08.160 | 71DIN-B50WD0816 | 160 | 141 | 2.7 | |||
| DIN69871-AD+B50 WD10.63 | 71DIN-B50WD1006 | 63 | 44 | 2.5 | |||
| DIN69871-AD+B50 WD10.110 | 71DIN-B50WD1011 | 10 | 30 | 110 | 91 | 2.7 | |
| DIN69871-AD+B50 WD10.160 | 71DIN-B50WD1016 | 160 | 141 | 2.9 | |||
| DIN69871-AD+B50 WD12.63 | 71DIN-B50WD1206 | 63 | 44 | 2.6 | |||
| DIN69871-AD+B50 WD12.110 | 71DIN-B50WD1211 | 12 | 34 | 110 | 91 | 2.8 | 1 |
| DIN69871-AD+B50 WD12.160 | 71DIN-B50WD1216 | 160 | 141 | 3.2 | |||
| DIN69871-AD+B50 WD14.63 | 71DIN-B50WD1406 | 14 | 38 | 63 | 44 | 2.7 | |
| DIN69871-AD+B50 WD14.110 | 71DIN-B50WD1411 | 110 | 91 | 3 | |||
| 50 DIN69871-AD+B50 WD16.63 | 71DIN-B50WD1606 | 63 | 44 | 2.8 | |||
| DIN69871-AD+B50 WD16.110 | 71DIN-B50WD1611 | 16 | 42 | 110 | 91 | 3.2 | |
| DIN69871-AD+B50 WD16.160 | 71DIN-B50WD1616 | 160 | 141 | 3.7 | |||
| DIN69871-AD+B50 WD18.63 | 71DIN-B50WD1806 | 18 | 46 | 63 | 44 | 2.9 | |
| DIN69871-AD+B50 WD18.110 | 71DIN-B50WD1811 | 110 | 91 | 3.4 | |||
| DIN69871-AD+B50 WD20.63 | 71DIN-B50WD2006 | 63 | 44 | 3 | |||
| DIN69871-AD+B50 WD20.110 | 71DIN-B50WD2011 | 20 | 50 | 110 | 91 | 3.6 | |
| DIN69871-AD+B50 WD20.160 | 71DIN-B50WD2016 | 160 | 141 | 4.2 | |||
| DIN69871-AD+B50 WD25.80 | 71DIN-B50WD2508 | 80 | 61 | 3.5 | |||
| DIN69871-AD+B50 WD25.110 | 71DIN-B50WD2511 | 25 | 63 | 110 | 91 | 4.1 | |
| DIN69871-AD+B50 WD25.160 | 71DIN-B50WD2516 | 160 | 141 | 5.1 | |||
| DIN69871-AD+B50 WD32.100 | 71DIN-B50WD3210 | 100 | 81 | 4.6 | |||
| DIN69871-AD+B50 WD32.160 | 71DIN-B50WD3216 | 32 | 70 | 160 | 141 | 6 | 2 |
| DIN69871-AD+B50 WD40.100 | 71DIN-B50WD4010 | 40 | 80 | 100 | 81 | 4.8 | |
| DIN69871-AD+B50 WD40.160 | 71DIN-B50WD4016 | 160 | 141 | 6.5 |
