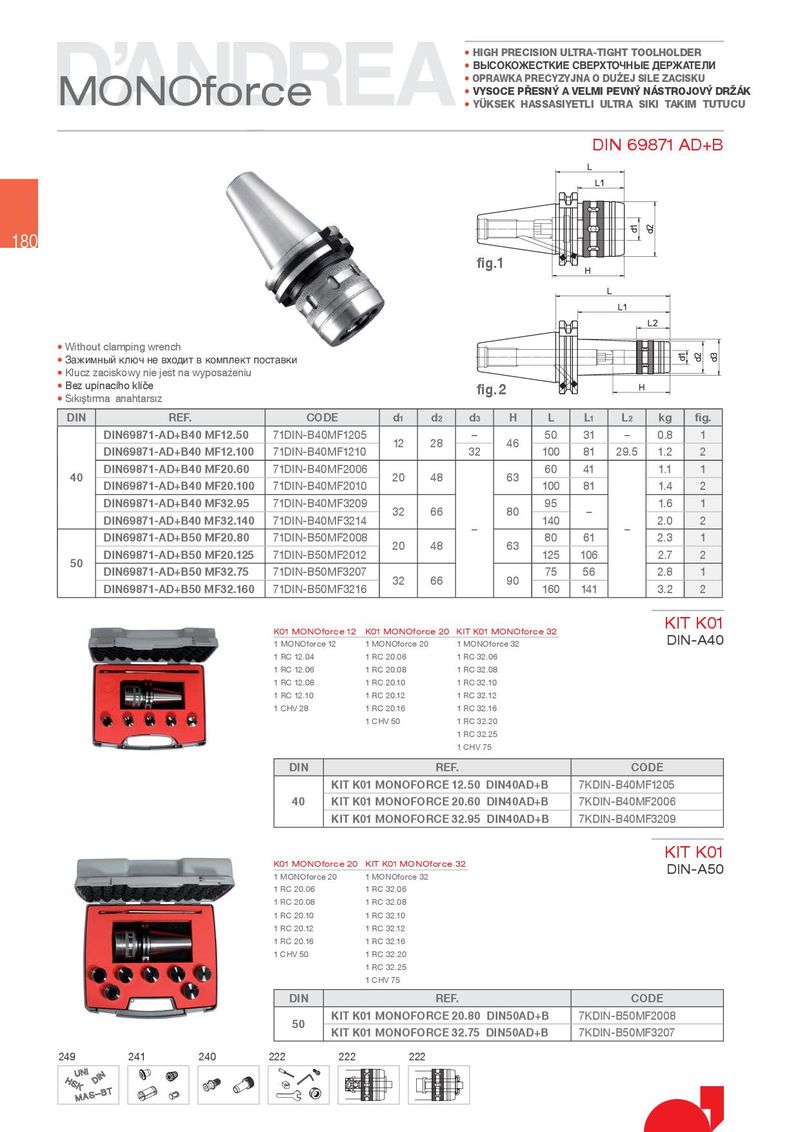

Общий каталог D'ANDREA 2018 - страница 181

Общий каталог D'andrea 2022

Общий каталог D'andrea 2022

YÜKSEK HASSASIYETLI ULTRA SIKI TAKIM TUTUCU

DIN 69871 AD+B

180

fig.1

Without clamping wrench
Зажимный ключ не входит в комплект поставки

•.OXF]]DFLVNRZ\QLHMHVWQDZ\SRVDƅHQLX

%H]XSÊQDFÊKRNOÊĦH fig.2

•6ĲNĲūWĲUPDDQDKWDUVĲ]

DIN	REF.	CODE	d1	d2	d3	H	L	L1	L2	kg	fig.
	DIN69871-AD+B40 MF12.50	71DIN-B40MF1205	12	28	–	46	50	31	–	0.8	1
	DIN69871-AD+B40 MF12.100	71DIN-B40MF1210			32		100	81	29.5	1.2	2
40	DIN69871-AD+B40 MF20.60	71DIN-B40MF2006	20	48		63	60	41		1.1	1
	DIN69871-AD+B40 MF20.100	71DIN-B40MF2010					100	81		1.4	2
	DIN69871-AD+B40 MF32.95	71DIN-B40MF3209					95			1.6	1
	DIN69871-AD+B40 MF32.140	71DIN-B40MF3214	32	66		80	140	–		2.0	2
	DIN69871-AD+B50 MF20.80	71DIN-B50MF2008	20	48	–	63	80	61	–	2.3	1
50	DIN69871-AD+B50 MF20.125	71DIN-B50MF2012					125	106		2.7	2
	DIN69871-AD+B50 MF32.75	71DIN-B50MF3207	2				75	56		2.8	1
	DIN69871-AD+B50 MF32.160	71DIN-B50MF3216	3	66		90	160	141		3.2	2

K01 MONOforce 12 K01 MONOforce 20 KIT K01 MONOforce 32

1 MONOforce 12	1 MONOforce 20	1 MONOforce 32
1 RC 12.04	1 RC 20.06	1 RC 32.06
1 RC 12.06	1 RC 20.08	1 RC 32.08
1 RC 12.08	1 RC 20.10	1 RC 32.10
1 RC 12.10	1 RC 20.12	1 RC 32.12
1 CHV 28	1 RC 20.16	1 RC 32.16

1 CHV 50 1 RC 32.20 1 RC 32.25 1 CHV 75

KIT K01

DIN-A40

DIN	REF.	CODE
	KIT K01 MONOFORCE 12.50 DIN40AD+B	7KDIN-B40MF1205
40	KIT K01 MONOFORCE 20.60 DIN40AD+B	7KDIN-B40MF2006
	KIT K01 MONOFORCE 32.95 DIN40AD+B	7KDIN-B40MF3209

KIT K01

K01 MONOforce 20 KIT K01 MONOforce 32 DIN-A50

1 MONOforce 20	1 MONOforce 32
1 RC 20.06	1 RC 32.06
1 RC 20.08	1 RC 32.08
1 RC 20.10	1 RC 32.10
1 RC 20.12	1 RC 32.12
1 RC 20.16	1 RC 32.16
1 CHV 50	1 RC 32.20

1 RC 32.25 1 CHV 75

DIN	REF.	CODE
	KIT K01 MONOFORCE 20.80 DIN50AD+B	7KDIN-B50MF2008
50	KIT K01 MONOFORCE 32.75 DIN50AD+B	7KDIN-B50MF3207
