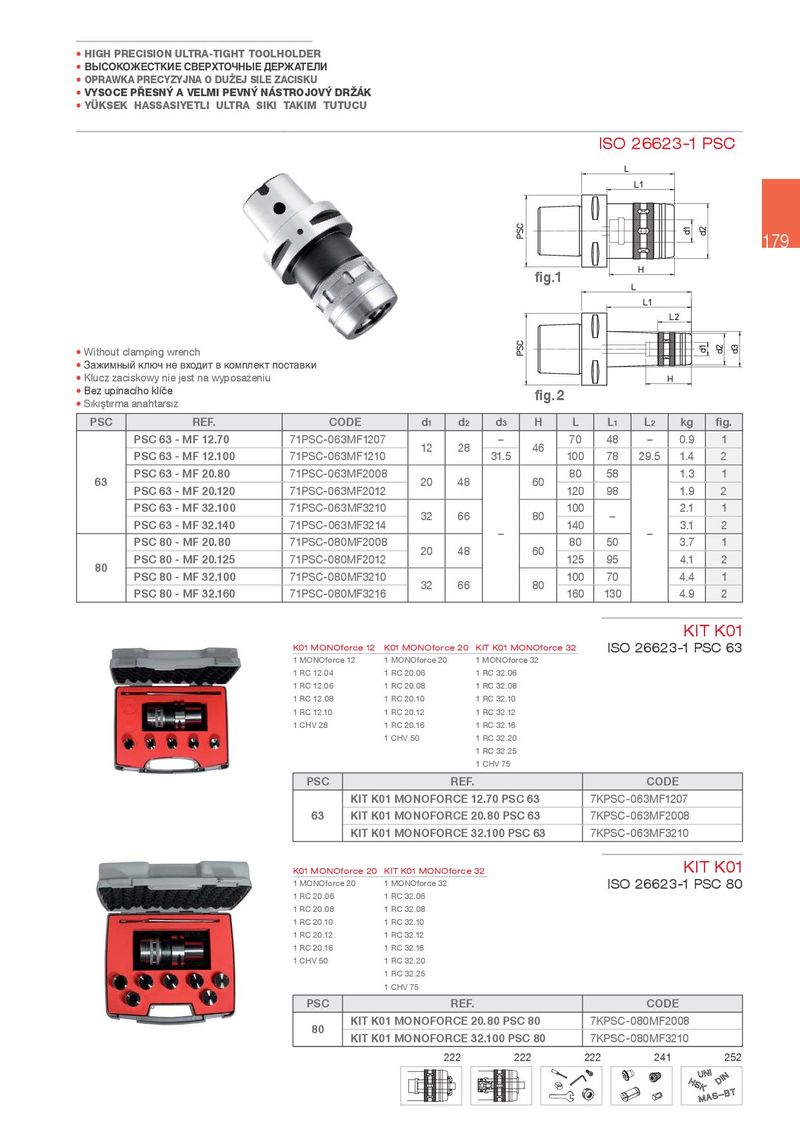

• HIGH PRECISION ULTRA-TIGHT TOOLHOLDER • ВЫСОКОЖЕСТКИЕ СВЕРХТОЧНЫЕ ДЕРЖАТЕЛИ • OPRAWKA PRECYZYJNA O DU¾EJ SILE ZACISKU • VYSOCE P¢ESN¹ A VELMI PEVN¹ NÁSTROJOV¹ DR½ÁK • YÜKSEK HASSASIYETLI ULTRA SIKI TAKIM TUTUCU ISO 26623-1 PSC 179 fig.1 • Without clamping wrench • Зажимный ключ не входит в комплект поставки •.OXF]]DFLVNRZ\QLHMHVWQDZ\SRVDƅHQLX • %H]XSÊQDFÊKRNOÊĦH fig.2 •6IJNIJūWIJUPDDQDKWDUVIJ] PSC REF. CODE d1 d2 d3 H L L1 L2 kg fig. PSC 63 - MF 12.70 71PSC-063MF1207 12 28 – 46 70 48 – 0.9 1 PSC 63 - MF 12.100 71PSC-063MF1210 31.5 100 78 29.5 1.4 2 63 PSC 63 - MF 20.80 71PSC-063MF2008 20 48 60 80 58 1.3 1 PSC 63 - MF 20.120 71PSC-063MF2012 120 98 1.9 2 PSC 63 - MF 32.100 71PSC-063MF3210 32 66 80 100 – 2.1 1 PSC 63 - MF 32.140 71PSC-063MF3214 – 140 – 3.1 2 PSC 80 - MF 20.80 71PSC-080MF2008 20 48 60 80 50 3.7 1 80 PSC 80 - MF 20.125 71PSC-080MF2012 125 95 4.1 2 PSC 80 - MF 32.100 71PSC-080MF3210 32 66 80 100 70 4.4 1 PSC 80 - MF 32.160 71PSC-080MF3216 160 130 4.9 2 KIT K01 K01 MONOforce 12 K01 MONOforce 20 KIT K01 MONOforce 32 ISO 26623-1 PSC 63 1 MONOforce 12 1 MONOforce 20 1 MONOforce 32 1 RC 12.04 1 RC 20.06 1 RC 32.06 1 RC 12.06 1 RC 20.08 1 RC 32.08 1 RC 12.08 1 RC 20.10 1 RC 32.10 1 RC 12.10 1 RC 20.12 1 RC 32.12 1 CHV 28 1 RC 20.16 1 RC 32.16 1 CHV 50 1 RC 32.20 1 RC 32.25 1 CHV 75 PSC REF. CODE KIT K01 MONOFORCE 12.70 PSC 63 7KPSC-063MF1207 63 KIT K01 MONOFORCE 20.80 PSC 63 7KPSC-063MF2008 KIT K01 MONOFORCE 32.100 PSC 63 7KPSC-063MF3210 K01 MONOforce 20 KIT K01 MONOforce 32 KIT K01 1 MONOforce 20 1 MONOforce 32 ISO 26623-1 PSC 80 1 RC 20.06 1 RC 32.06 1 RC 20.08 1 RC 32.08 1 RC 20.10 1 RC 32.10 1 RC 20.12 1 RC 32.12 1 RC 20.16 1 RC 32.16 1 CHV 50 1 RC 32.20 1 RC 32.25 1 CHV 75 PSC REF. CODE 80 KIT K01 MONOFORCE 20.80 PSC 80 7KPSC-080MF2008 KIT K01 MONOFORCE 32.100 PSC 80 7KPSC-080MF3210 222 222 222 241 252
