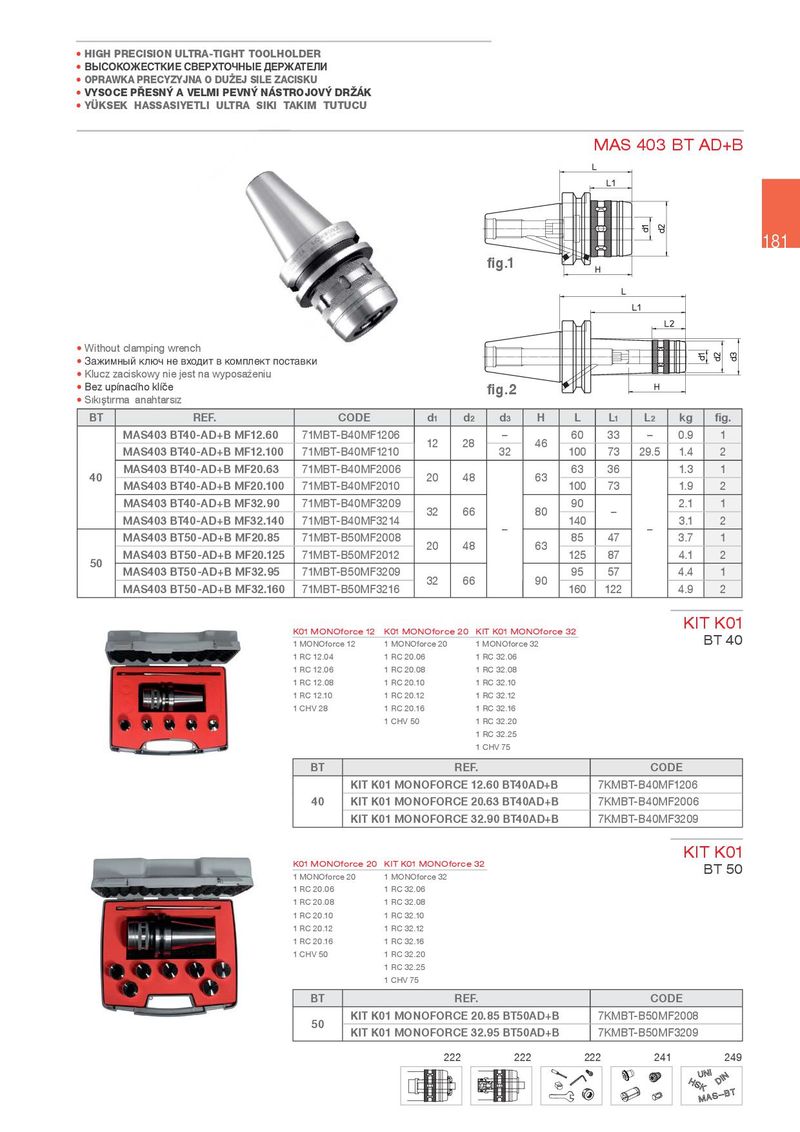

• HIGH PRECISION ULTRA-TIGHT TOOLHOLDER • ВЫСОКОЖЕСТКИЕ СВЕРХТОЧНЫЕ ДЕРЖАТЕЛИ • OPRAWKA PRECYZYJNA O DU¾EJ SILE ZACISKU • VYSOCE P¢ESN¹ A VELMI PEVN¹ NÁSTROJOV¹ DR½ÁK • YÜKSEK HASSASIYETLI ULTRA SIKI TAKIM TUTUCU MAS 403 BT AD+B 181 fig.1 • Without clamping wrench • Зажимный ключ не входит в комплект поставки •.OXF]]DFLVNRZ\QLHMHVWQDZ\SRVDƅHQLX • %H]XSÊQDFÊKRNOÊĦH fig.2 •6IJNIJūWIJUPDDQDKWDUVIJ] BT REF. CODE d1 d2 d3 H L L1 L2 kg fig. MAS403 BT40-AD+B MF12.60 71MBT-B40MF1206 12 28 – 46 60 33 – 0.9 1 MAS403 BT40-AD+B MF12.100 71MBT-B40MF1210 32 100 73 29.5 1.4 2 40 MAS403 BT40-AD+B MF20.63 71MBT-B40MF2006 20 48 63 63 36 1.3 1 MAS403 BT40-AD+B MF20.100 71MBT-B40MF2010 100 73 1.9 2 MAS403 BT40-AD+B MF32.90 71MBT-B40MF3209 32 66 80 90 – 2.1 1 MAS403 BT40-AD+B MF32.140 71MBT-B40MF3214 – 140 – 3.1 2 MAS403 BT50-AD+B MF20.85 71MBT-B50MF2008 20 48 63 85 47 3.7 1 50 MAS403 BT50-AD+B MF20.125 71MBT-B50MF2012 125 87 4.1 2 MAS403 BT50-AD+B MF32.95 71MBT-B50MF3209 32 66 90 95 57 4.4 1 MAS403 BT50-AD+B MF32.160 71MBT-B50MF3216 160 122 4.9 2 K01 MONOforce 12 K01 MONOforce 20 KIT K01 MONOforce 32 KIT K01 1 MONOforce 12 1 MONOforce 20 1 MONOforce 32 BT 40 1 RC 12.04 1 RC 20.06 1 RC 32.06 1 RC 12.06 1 RC 20.08 1 RC 32.08 1 RC 12.08 1 RC 20.10 1 RC 32.10 1 RC 12.10 1 RC 20.12 1 RC 32.12 1 CHV 28 1 RC 20.16 1 RC 32.16 1 CHV 50 1 RC 32.20 1 RC 32.25 1 CHV 75 BT REF. CODE KIT K01 MONOFORCE 12.60 BT40AD+B 7KMBT-B40MF1206 40 KIT K01 MONOFORCE 20.63 BT40AD+B 7KMBT-B40MF2006 KIT K01 MONOFORCE 32.90 BT40AD+B 7KMBT-B40MF3209 K01 MONOforce 20 KIT K01 MONOforce 32 KIT K01 1 MONOforce 20 1 MONOforce 32 BT 50 1 RC 20.06 1 RC 32.06 1 RC 20.08 1 RC 32.08 1 RC 20.10 1 RC 32.10 1 RC 20.12 1 RC 32.12 1 RC 20.16 1 RC 32.16 1 CHV 50 1 RC 32.20 1 RC 32.25 1 CHV 75 BT REF. CODE 50 KIT K01 MONOFORCE 20.85 BT50AD+B 7KMBT-B50MF2008 KIT K01 MONOFORCE 32.95 BT50AD+B 7KMBT-B50MF3209 222 222 222 241 249
