Каталог Carmex общий 2021 - страница 435

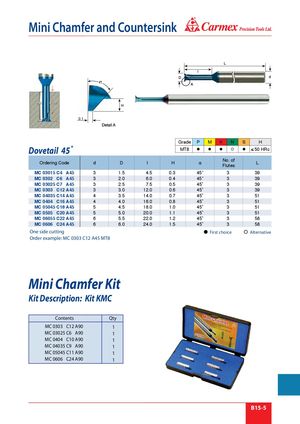

® Mini Chamfer and Countersink 0.1 Grade P M K N S H Dovetail 45˚ MT8      ≤ 50 HRc No. of Ordering Code d D I H α L Flutes MC 03015 C4 A45 3 1.5 4.5 0.3 45˚ 3 39 MC 0302 C6 A45 3 2.0 6.0 0.4 45˚ 3 39 MC 03025 C7 A45 3 2.5 7.5 0.5 45˚ 3 39 MC 0303 C12 A45 3 3.0 12.0 0.6 45˚ 3 39 MC 04035 C14 A45 4 3.5 14.0 0.7 45˚ 3 51 MC 0404 C16 A45 4 4.0 16.0 0.8 45˚ 3 51 MC 05045 C18 A45 5 4.5 18.0 1.0 45˚ 3 51 MC 0505 C20 A45 5 5.0 20.0 1.1 45˚ 3 51 MC 06055 C22 A45 6 5.5 22.0 1.2 45˚ 3 58 MC 0606 C24 A45 6 6.0 24.0 1.5 45˚ 3 58 One side cutting First choice Alternative Order example: MC 0303 C12 A45 MT8 Mini Chamfer Kit Kit Description: Kit KMC Contents Qty MC 0303 C12 A90 1 MC 03025 C6 A90 1 MC 0404 C10 A90 1 MC 04035 C9 A90 1 MC 05045 C11 A90 1 MC 0606 C24 A90 1 B15-5
