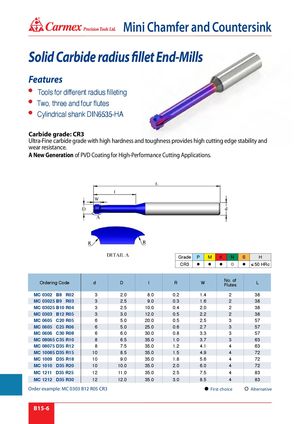

® Mini Chamfer and Countersink Solid Carbide radius fillet End-Mills Features Tools for different radius filleting Two, three and four flutes Cylindrical shank DIN6535-HA Carbide grade: CR3 Ultra-Fine carbide grade with high hardness and toughness provides high cutting edge stability and wear resistance. A New Generation of PVD Coating for High-Performance Cutting Applications. l W Grade P M K N S H CR3      ≤ 50 HRc No. of Ordering Code d D l R W L Flutes MC 0302 B8 R02 3 2.0 8.0 0.2 1.4 2 38 MC 03025 B9 R03 3 2.5 9.0 0.3 1.6 2 38 MC 03025 B10 R04 3 2.5 10.0 0.4 2.0 2 38 MC 0303 B12 R05 3 3.0 12.0 0.5 2.2 2 38 MC 0605 C20 R05 6 5.0 20.0 0.5 2.5 3 57 MC 0605 C25 R06 6 5.0 25.0 0.6 2.7 3 57 MC 0606 C30 R08 6 6.0 30.0 0.8 3.3 3 57 MC 08065 C35 R10 8 6.5 35.0 1.0 3.7 3 63 MC 08075 D35 R12 8 7.5 35.0 1.2 4.1 4 63 MC 10085 D35 R15 10 8.5 35.0 1.5 4.9 4 72 MC 1009 D35 R18 10 9.0 35.0 1.8 5.6 4 72 MC 1010 D35 R20 10 10.0 35.0 2.0 6.0 4 72 MC 1211 D35 R25 12 11.0 35.0 2.5 7.5 4 83 MC 1212 D35 R30 12 12.0 35.0 3.0 8.5 4 83 Order example: MC 0303 B12 R05 CR3 First choice Alternative B15-6
