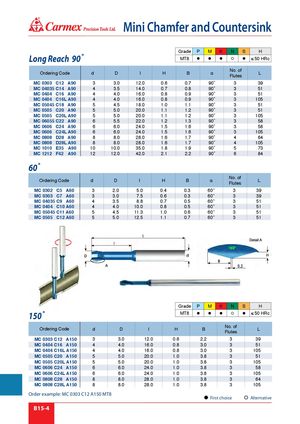

® Mini Chamfer and Countersink Grade P M K N S H Long Reach 90˚ MT8      ≤ 50 HRc No. of Ordering Code d D I H B α L Flutes MC 0303 C12 A90 3 3.0 12.0 0.6 0.7 90˚ 3 39 MC 04035 C14 A90 4 3.5 14.0 0.7 0.8 90˚ 3 51 MC 0404 C16 A90 4 4.0 16.0 0.8 0.9 90˚ 3 51 MC 0404 C16L A90 4 4.0 16.0 0.8 0.9 90˚ 3 105 MC 05045 C18 A90 5 4.5 18.0 1.0 1.1 90˚ 3 51 MC 0505 C20 A90 5 5.0 20.0 1.1 1.2 90˚ 3 51 MC 0505 C20L A90 5 5.0 20.0 1.1 1.2 90˚ 3 105 MC 06055 C22 A90 6 5.5 22.0 1.2 1.3 90˚ 3 58 MC 0606 C24 A90 6 6.0 24.0 1.5 1.6 90˚ 3 58 MC 0606 C24L A90 6 6.0 24.0 1.5 1.6 90˚ 3 105 MC 0808 D28 A90 8 8.0 28.0 1.6 1.7 90˚ 4 64 MC 0808 D28L A90 8 8.0 28.0 1.6 1.7 90˚ 4 105 MC 1010 E35 A90 10 10.0 35.0 1.8 1.9 90˚ 5 73 MC 1212 F42 A90 12 12.0 42.0 2.1 2.2 90˚ 6 84 60˚ No. of Ordering Code d D I H B α L Flutes MC 0302 C5 A60 3 2.0 5.0 0.4 0.3 60˚ 3 39 MC 0303 C7 A60 3 3.0 7.5 0.6 0.3 60˚ 3 39 MC 04035 C9 A60 4 3.5 8.8 0.7 0.5 60˚ 3 51 MC 0404 C10 A60 4 4.0 10.0 0.8 0.5 60˚ 3 51 MC 05045 C11 A60 5 4.5 11.3 1.0 0.6 60˚ 3 51 MC 0505 C12 A60 5 5.0 12.5 1.1 0.7 60˚ 3 51 Grade P M K N S H 150˚ MT8      ≤ 50 HRc No. of Ordering Code d D I H B L Flutes MC 0303 C12 A150 3 3.0 12.0 0.6 2.2 3 39 MC 0404 C16 A150 4 4.0 16.0 0.8 3.0 3 51 MC 0404 C16L A150 4 4.0 16.0 0.8 3.0 3 105 MC 0505 C20 A150 5 5.0 20.0 1.0 3.8 3 51 MC 0505 C20L A150 5 5.0 20.0 1.0 3.8 3 105 MC 0606 C24 A150 6 6.0 24.0 1.0 3.8 3 58 MC 0606 C24L A150 6 6.0 24.0 1.0 3.8 3 105 MC 0808 C28 A150 8 8.0 28.0 1.0 3.8 3 64 MC 0808 C28L A150 8 8.0 28.0 1.0 3.8 3 105 Order example: MC 0303 C12 A150 MT8 First choice Alternative B15-4
