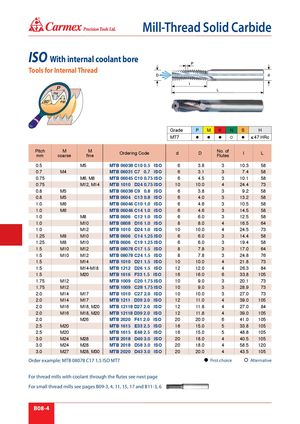

Каталог Carmex общий 2021 - страница 302

® Mill-Thread Solid Carbide ISO With internal coolant bore Tools for Internal Thread Grade P M K N S H MT7      ≤ 47 HRc Pitch M Mmmcoarsefine Ordering Code d D No. ofFlutes I L 0.5 M5 MTB 06038 C10 0.5 ISO 6 3.8 3 10.3 58 0.7 M4 MTB 06031 C7 0.7 ISO 6 3.1 3 7.4 58 0.75 M6, M8 MTB 06045 C10 0.75 ISO 6 4.5 3 10.1 58 0.75 M12, M14 MTB 1010 D24 0.75 ISO 10 10.0 4 24.4 73 0.8 M5 MTB 06038 C9 0.8 ISO 6 3.8 3 9.2 58 0.8 M5 MTB 0604 C13 0.8 ISO 6 4.0 3 13.2 58 1.0 M6 MTB 06046 C10 1.0 ISO 6 4.6 3 10.5 58 1.0 M6 MTB 06046 C14 1.0 ISO 6 4.6 3 14.5 58 1.0 M8 MTB 0606 C12 1.0 ISO 6 6.0 3 12.5 58 1.0 M10 MTB 0808 D16 1.0 ISO 8 8.0 4 16.5 64 1.0 M12 MTB 1010 D24 1.0 ISO 10 10.0 4 24.5 73 1.25 M8 M10 MTB 0606 C14 1.25 ISO 6 6.0 3 14.4 58 1.25 M8 M10 MTB 0606 C19 1.25 ISO 6 6.0 3 19.4 58 1.5 M10 M12 MTB 08078 C17 1.5 ISO 8 7.8 3 17.0 64 1.5 M10 M12 MTB 08078 C24 1.5 ISO 8 7.8 3 24.8 76 1.5 M14 MTB 1010 D21 1.5 ISO 10 10.0 4 21.8 73 1.5 M14-M18 MTB 1212 D26 1.5 ISO 12 12.0 4 26.3 84 1.5 M20 MTB 1616 F33 1.5 ISO 16 16.0 6 33.8 105 1.75 M12 MTB 1009 C20 1.75 ISO 10 9.0 3 20.1 73 1.75 M12 MTB 1009 C28 1.75 ISO 10 9.0 3 28.9 73 2.0 M14 M17 MTB 1010 C27 2.0 ISO 10 10.0 3 27.0 73 2.0 M14 M17 MTB 1211 D39 2.0 ISO 12 11.0 4 39.0 105 2.0 M16 M18, M20 MTB 12118 D27 2.0 ISO 12 11.8 4 27.0 84 2.0 M16 M18, M20 MTB 12118 D39 2.0 ISO 12 11.8 4 39.0 105 2.0 M26 MTB 2020 F41 2.0 ISO 20 20.0 6 41.0 105 2.5 M20 MTB 1615 E33 2.5 ISO 16 15.0 5 33.8 105 2.5 M20 MTB 1615 E48 2.5 ISO 16 15.0 5 48.8 105 3.0 M24 M28 MTB 2018 D40 3.0 ISO 20 18.0 4 40.5 105 3.0 M24 M28 MTB 2018 D58 3.0 ISO 20 18.0 4 58.5 120 3.0 M27 M28, M30 MTB 2020 D43 3.0 ISO 20 20.0 4 43.5 105 Order example: MTB 08078 C17 1.5 ISO MT7 First choice Alternative For thread mills with coolant through the flutes see next page For small thread mills see pages B09-3, 4, 11, 15, 17 and B11-3, 6 B08-4
