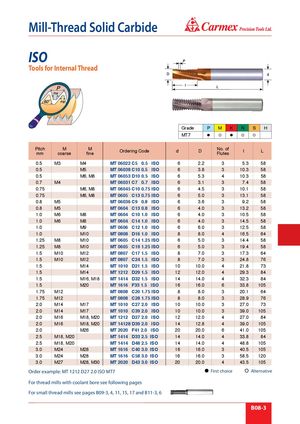

Каталог Carmex общий 2021 - страница 301

® Mill-Thread Solid Carbide ISO Tools for Internal Thread Grade P M K N S H MT7      Pitch M Mmmcoarsefine Ordering Code d D No. ofFlutes I L 0.5 M3 M4 MT 06022 C5 0.5 ISO 6 2.2 3 5.3 58 0.5 M5 MT 06038 C10 0.5 ISO 6 3.8 3 10.3 58 0.5 M6, M8 MT 06053 D10 0.5 ISO 6 5.3 4 10.3 58 0.7 M4 MT 06031 C7 0.7 ISO 6 3.1 3 7.4 58 0.75 M6, M8 MT 06045 C10 0.75 ISO 6 4.5 3 10.1 58 0.75 M6, M8 MT 0605 C13 0.75 ISO 6 5.0 3 13.1 58 0.8 M5 MT 06036 C9 0.8 ISO 6 3.6 3 9.2 58 0.8 M5 MT 0604 C13 0.8 ISO 6 4.0 3 13.2 58 1.0 M6 M8 MT 0604 C10 1.0 ISO 6 4.0 3 10.5 58 1.0 M6 M8 MT 0604 C14 1.0 ISO 6 4.0 3 14.5 58 1.0 M9 MT 0606 C12 1.0 ISO 6 6.0 3 12.5 58 1.0 M10 MT 0808 D16 1.0 ISO 8 8.0 4 16.5 64 1.25 M8 M10 MT 0605 C14 1.25 ISO 6 5.0 3 14.4 58 1.25 M8 M10 MT 0605 C19 1.25 ISO 6 5.0 3 19.4 58 1.5 M10 M12 MT 0807 C17 1.5 ISO 8 7.0 3 17.3 64 1.5 M10 M12 MT 0807 C24 1.5 ISO 8 7.0 3 24.8 76 1.5 M14 MT 1010 D21 1.5 ISO 10 10.0 4 21.8 73 1.5 M14 MT 1212 D29 1.5 ISO 12 12.0 4 29.3 84 1.5 M16, M18 MT 1414 D32 1.5 ISO 14 14.0 4 32.3 84 1.5 M20 MT 1616 F33 1.5 ISO 16 16.0 6 33.8 105 1.75 M12 MT 0808 C20 1.75 ISO 8 8.0 3 20.1 64 1.75 M12 MT 0808 C28 1.75 ISO 8 8.0 3 28.9 76 2.0 M14 M17 MT 1010 C27 2.0 ISO 10 10.0 3 27.0 73 2.0 M14 M17 MT 1010 C39 2.0 ISO 10 10.0 3 39.0 105 2.0 M16 M18, M20 MT 1212 D27 2.0 ISO 12 12.0 4 27.0 84 2.0 M16 M18, M20 MT 14128 D39 2.0 ISO 14 12.8 4 39.0 105 2.0 M26 MT 2020 F41 2.0 ISO 20 20.0 6 41.0 105 2.5 M18, M20 MT 1414 D33 2.5 ISO 14 14.0 4 33.8 84 2.5 M18, M20 MT 1414 D48 2.5 ISO 14 14.0 4 48.8 105 3.0 M24 M28 MT 1616 C40 3.0 ISO 16 16.0 3 40.5 105 3.0 M24 M28 MT 1616 C58 3.0 ISO 16 16.0 3 58.5 120 3.0 M27 M28, M30 MT 2020 D43 3.0 ISO 20 20.0 4 43.5 105 Order example: MT 1212 D27 2.0 ISO MT7 First choice Alternative For thread mills with coolant bore see following pages For small thread mills see pages B09-3, 4, 11, 15, 17 and B11-3, 6 B08-3
