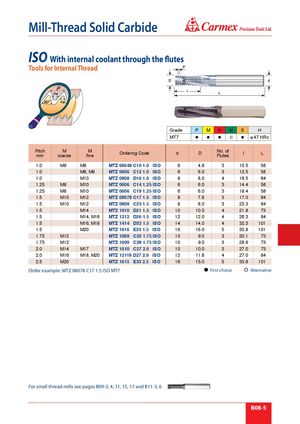

Каталог Carmex общий 2021 - страница 303

® Mill-Thread Solid Carbide ISO With internal coolant through the flutes Tools for Internal Thread Grade P M K N S H MT7      ≤ 47 HRc Pitch M Mmmcoarsefine Ordering Code d D No. ofFlutes I L 1.0 M6 M8 MTZ 06048 C10 1.0 ISO 6 4.8 3 10.5 58 1.0 M8, M9 MTZ 0606 C12 1.0 ISO 6 6.0 3 12.5 58 1.0 M10 MTZ 0808 D16 1.0 ISO 8 8.0 4 16.5 64 1.25 M8 M10 MTZ 0606 C14 1.25 ISO 6 6.0 3 14.4 58 1.25 M8 M10 MTZ 0606 C19 1.25 ISO 6 6.0 3 19.4 58 1.5 M10 M12 MTZ 08078 C17 1.5 ISO 8 7.8 3 17.0 64 1.5 M10 M12 MTZ 0808 C23 1.5 ISO 8 8.0 3 23.3 64 1.5 M14 MTZ 1010 D21 1.5 ISO 10 10.0 4 21.8 73 1.5 M14, M16 MTZ 1212 D26 1.5 ISO 12 12.0 4 26.3 84 1.5 M16, M18 MTZ 1414 D32 1.5 ISO 14 14.0 4 32.3 101 1.5 M20 MTZ 1616 E33 1.5 ISO 16 16.0 5 33.8 101 1.75 M12 MTZ 1009 C20 1.75 ISO 10 9.0 3 20.1 73 1.75 M12 MTZ 1009 C28 1.75 ISO 10 9.0 3 28.9 73 2.0 M14 M17 MTZ 1010 C27 2.0 ISO 10 10.0 3 27.0 73 2.0 M16 M18, M20 MTZ 12118 D27 2.0 ISO 12 11.8 4 27.0 84 2.5 M20 MTZ 1615 E33 2.5 ISO 16 15.0 5 33.8 101 Order example: MTZ 08078 C17 1.5 ISO MT7 First choice Alternative For small thread mills see pages B09-3, 4, 11, 15, 17 and B11-3, 6 B08-5
