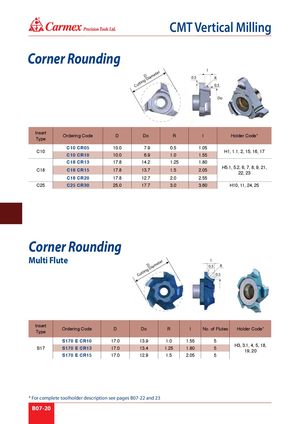

® CMT Vertical Milling Corner Rounding CCuttttiinngDgDDDiaimameteerter l00.5.5RR00.5.5 Do InsertType Ordering Code D Do R I Holder Code* C10 C10 CR05C10 CR10 10.010.0 7.9 0.56.91.0 1.051.55 H1, 1.1, 2, 15, 16, 17 C18 CR13 17.8 14.2 1.25 1.80 C18 C18 CR15 17.8 13.7 1.5 2.05 H5.1, 5.2, 6, 7, 8, 9, 21,22, 23 C18 CR20 17.8 12.7 2.0 2.55 C25 C25 CR30 25.0 17.7 3.0 3.60 H10, 11, 24, 25 Corner Rounding Multi Flute CuttingDDiameter l0.5 R0.5 InsertType Ordering Code D Do R I No. of Flutes Holder Code* S170 E CR10 17.0 13.9 1.0 1.55 5 S17 S170 E CR13 17.0 13.4 1.25 1.80 5 H3, 3.1, 4, 5, 18,19, 20 S170 E CR15 17.0 12.9 1.5 2.05 5 * For complete toolholder description see pages B07-22 and 23 B07-20
