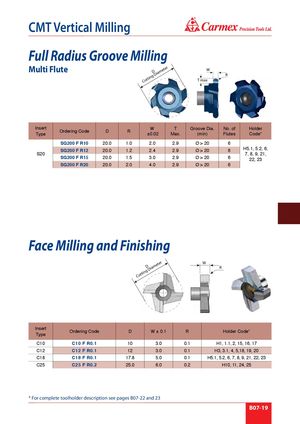

® CMT Vertical Milling Full Radius Groove Milling Multi Flute D iame D ter W R in g tt T max Cu Insert W T Groove Dia. No. of Holder Ordering Code D R Type ±0.02 Max. (min) Flutes Code* SG200 F R10 20.0 1.0 2.0 2.9 Ø > 20 6 SG200 F R12 20.0 1.2 2.4 2.9 Ø > 20 6 H5.1, 5.2, 6, S20 7, 8, 9, 21, SG200 F R15 20.0 1.5 3.0 2.9 Ø > 20 6 22, 23 SG200 F R20 20.0 2.0 4.0 2.9 Ø > 20 6 Face Milling and Finishing ter W D iame R g D tti n Cu Insert Ordering Code D W ± 0.1 R Holder Code* Type C10 C10 F R0.1 10 3.0 0.1 H1, 1.1, 2, 15, 16, 17 C12 C12 F R0.1 12 3.0 0.1 H3, 3.1, 4, 5,18, 19, 20 C18 C18 F R0.1 17.8 5.0 0.1 H5.1, 5.2, 6, 7, 8, 9, 21, 22, 23 C25 C25 F R0.2 25.0 6.0 0.2 H10, 11, 24, 25 * For complete toolholder description see pages B07-22 and 23 B07-19
