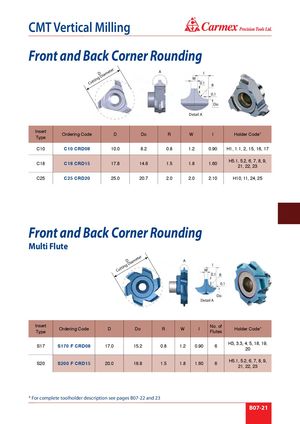

® CMT Vertical Milling Front and Back Corner Rounding ter A D iame I g D W ttin Cu 0.1 R 0.1 Do Detail A Insert Ordering Code D Do R W I Holder Code* Type C10 C10 CRD08 10.0 8.2 0.8 1.2 0.90 H1, 1.1, 2, 15, 16, 17 H5.1, 5.2, 6, 7, 8, 9, C18 C18 CRD15 17.8 14.6 1.5 1.8 1.60 21, 22, 23 C25 C25 CRD20 25.0 20.7 2.0 2.0 2.10 H10, 11, 24, 25 Front and Back Corner Rounding Multi Flute ter D iame A g D I ttin Cu W 0.1 R 0.1 Do Detail A Insert No. of Ordering Code D Do R W I Holder Code* Type Flutes H3, 3.3, 4, 5, 18, 19, S17 S170 F CRD08 17.0 15.2 0.8 1.2 0.90 6 20 H5.1, 5.2, 6, 7, 8, 9, S20 S200 F CRD15 20.0 16.8 1.5 1.8 1.60 6 21, 22, 23 * For complete toolholder description see pages B07-22 and 23 B07-21
