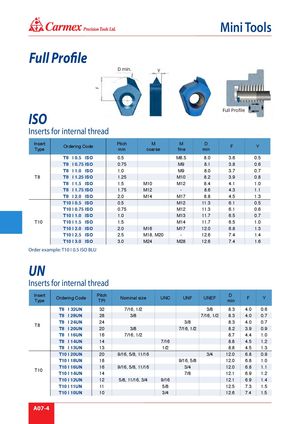

® Mini Tools Full Profile D min. Y F Full Profile ISO Inserts for internal thread Insert Pitch M M D Ordering Code F Y Type mm coarse fine min T8 I 0.5 ISO 0.5 M8.5 8.0 3.6 0.5 T8 I 0.75 ISO 0.75 M9 8.1 3.8 0.6 T8 I 1.0 ISO 1.0 M9 8.0 3.7 0.7 T8 T8 I 1.25 ISO 1.25 M10 8.2 3.9 0.8 T8 I 1.5 ISO 1.5 M10 M12 8.4 4.1 1.0 T8 I 1.75 ISO 1.75 M12 - 8.6 4.3 1.1 T8 I 2.0 ISO 2.0 M14 M17 8.8 4.5 1.3 T10 I 0.5 ISO 0.5 M12 11.3 6.1 0.5 T10 I 0.75 ISO 0.75 M12 11.3 6.1 0.6 T10 I 1.0 ISO 1.0 M13 11.7 6.5 0.7 T10 T10 I 1.5 ISO 1.5 M14 11.7 6.5 1.0 T10 I 2.0 ISO 2.0 M16 M17 12.0 6.8 1.3 T10 I 2.5 ISO 2.5 M18, M20 - 12.6 7.4 1.4 T10 I 3.0 ISO 3.0 M24 M28 12.6 7.4 1.6 Order example: T10 I 0.5 ISO BLU UN Inserts for internal thread Insert Pitch D Ordering Code Nominal size UNC UNF UNEF F Y Type TPI min T8 I 32UN 32 7/16, 1/2 3/8 8.3 4.0 0.6 T8 I 28UN 28 3/8 7/16, 1/2 8.3 4.0 0.7 T8 I 24UN 24 3/8 8.3 4.0 0.7 T8 T8 I 20UN 20 3/8 7/16, 1/2 8.2 3.9 0.9 T8 I 16UN 16 7/16, 1/2 8.7 4.4 1.0 T8 I 14UN 14 7/16 8.8 4.5 1.2 T8 I 13UN 13 1/2 8.8 4.5 1.3 T10 I 20UN 20 9/16, 5/8, 11/16 3/4 12.0 6.8 0.9 T10 I 18UN 18 9/16, 5/8 12.0 6.8 1.0 T10 I 16UN 16 9/16, 5/8, 11/16 3/4 12.0 6.8 1.1 T10 T10 I 14UN 14 7/8 12.1 6.9 1.2 T10 I 12UN 12 5/8, 11/16, 3/4 9/16 12.1 6.9 1.4 T10 I 11UN 11 5/8 12.5 7.3 1.5 T10 I 10UN 10 3/4 12.6 7.4 1.5 A07-4
