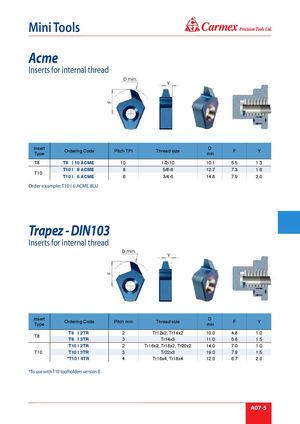

Каталог Carmex общий 2021 - страница 159

® Mini Tools Acme Inserts for internal thread D min. Y F Insert D Ordering Code Pitch TPI Thread size F Y Type min T8 T8 I 10 ACME 10 1/2-10 10.1 5.5 1.3 T10 I 8 ACME 8 5/8-8 12.7 7.3 1.6 T10 T10 I 6 ACME 6 3/4-6 14.8 7.9 2.0 Order example: T10 I 6 ACME BLU Trapez - DIN103 Inserts for internal thread D min. Y F Insert D Ordering Code Pitch mm Thread size F Y Type min T8 I 2TR 2 Tr12x2, Tr14x2 10.0 4.8 1.0 T8 T8 I 3TR 3 Tr14x3 11.0 5.8 1.5 T10 I 2TR 2 Tr16x2, Tr18x2, Tr20x2 14.0 7.0 1.0 T10 T10 I 3TR 3 Tr22x3 19.0 7.9 1.5 *T10 I 4TR 4 Tr16x4, Tr18x4 12.0 6.7 2.0 *To use with T10 toolholders version B A07-5
