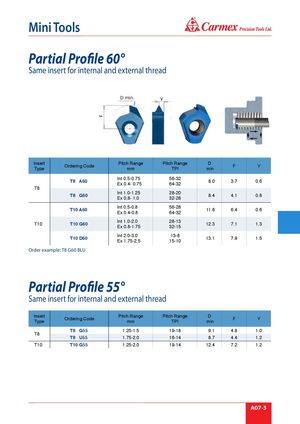

® Mini Tools Partial Profile 60° Same insert for internal and external thread D min. Y F Insert Pitch Range Pitch Range D Ordering Code F Y Type mm TPI min Int 0.5-0.75 56-32 T8 A60 8.0 3.7 0.6 Ex 0.4- 0.75 64-32 T8 Int 1.0-1.25 28-20 T8 G60 8.4 4.1 0.8 Ex 0.8- 1.0 32-28 Int 0.5-0.8 56-28 T10 A60 11.6 6.4 0.6 Ex 0.4-0.8 64-32 Int 1.0-2.0 28-13 T10 T10 G60 12.3 7.1 1.3 Ex 0.8-1.75 32-15 Int 2.0-3.0 13-8 T10 D60 13.1 7.9 1.5 Ex 1.75-2.5 15-10 Order example: T8 G60 BLU Partial Profile 55° Same insert for internal and external thread Insert Pitch Range Pitch Range D Ordering Code F Y Type mm TPI min T8 G55 1.25-1.5 19-18 9.1 4.8 1.0 T8 T8 U55 1.75-2.0 16-14 8.7 4.4 1.2 T10 T10 G55 1.25-2.0 19-14 12.4 7.2 1.2 A07-3
