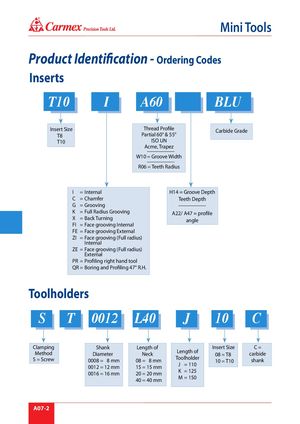

® Mini Tools Product Identification - Ordering Codes Inserts T10 I A60 BLU Insert Size Thread Profile Carbide Grade T8 Partial 60° & 55° T10 ISO UN Acme, Trapez W10 = Groove Width R06 = Teeth Radius I = Internal H14 = Groove Depth C = Chamfer Teeth Depth G = Grooving K = Full Radius Grooving A22/ A47 = profile X = Back Turning angle FI = Face grooving Internal FE = Face grooving External ZI = Face grooving (Full radius) Internal ZE = Face grooving (Full radius) External PR = Profiling right hand tool QR = Boring and Profiling 47° R.H. Toolholders S T 0012 L40 J 10 C Clamping Shank Length of Insert Size C= Method Diameter Neck Length of carbide 08 = T8 S = Screw 0008 = 8 mm 08 = 8 mm Toolholder shank 10 = T10 0012 = 12 mm 15 = 15 mm J = 110 0016 = 16 mm 20 = 20 mm K = 125 40 = 40 mm M = 150 A07-2
