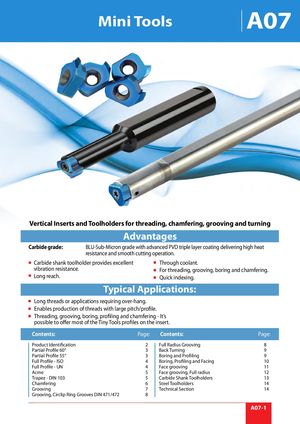

Swiss-Line Mini Tools ® A07 Vertical Inserts and Toolholders for threading, chamfering, grooving and turning Advantages Carbide grade: BLU-Sub-Micron grade with advanced PVD triple layer coating delivering high heat resistance and smooth cutting operation. Carbide shank toolholder provides excellent Through coolant. vibration resistance. For threading, grooving, boring and chamfering. Long reach. Quick indexing. Typical Applications: Long threads or applications requiring over-hang. Enables production of threads with large pitch/profile. Threading, grooving, boring, profiling and chamfering - It’s possible to offer most of the Tiny Tools profiles on the insert. Contents: Page: Contents: Page: Product Identification 2 Full Radius Grooving 8 Partial Profile 60° 3 Back Turning 9 Partial Profile 55° 3 Boring and Profiling 9 Full Profile - ISO 4 Boring, Profiling and Facing 10 Full Profile - UN 4 Face grooving 11 Acme 5 Face grooving, Full radius 12 Trapez - DIN 103 5 Carbide Shank Toolholders 13 Chamfering 6 Steel Toolholders 14 Grooving 7 Technical Section 14 Grooving, Circlip Ring Grooves DIN 471/472 8 A07-1
