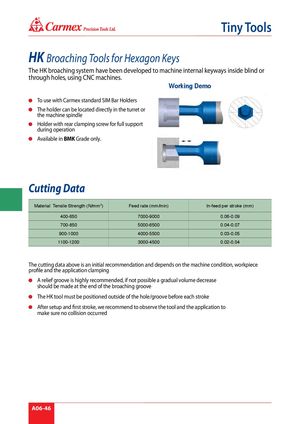

® Tiny Tools HK Broaching Tools for Hexagon Keys The HK broaching system have been developed to machine internal keyways inside blind or through holes, using CNC machines. Working Demo To use with Carmex standard SIM Bar Holders The holder can be located directly in the turret or the machine spindle Holder with rear clamping screw for full support during operation Available in BMK Grade only. Cutting Data Material Tensile Strength (N/mm2) Feed rate (mm/min) In-feed per stroke (mm) 400-650 7000-9000 0.06-0.09 700-850 5000-6500 0.04-0.07 900-1000 4000-5500 0.03-0.05 1100-1200 3000-4500 0.02-0.04 The cutting data above is an initial recommendation and depends on the machine condition, workpiece profile and the application clamping A relief groove is highly recommended, if not possible a gradual volume decrease should be made at the end of the broaching groove The HK tool must be positioned outside of the hole/groove before each stroke After setup and first stroke, we recommend to observe the tool and the application to make sure no collision occurred A06-46
