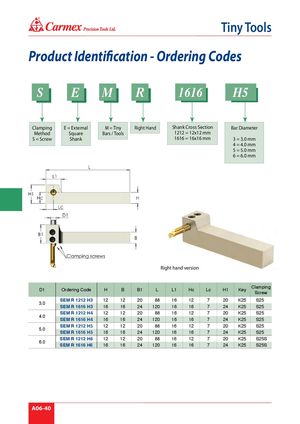

® Tiny Tools Product Identification - Ordering Codes S E M R 1616 H5 Clamping E = External M = Tiny Right Hand Shank Cross Section Bar Diameter Method Square Bars / Tools 1212 = 12x12 mm S = Screw Shank 1616 = 16x16 mm 3 = 3.0 mm 4 = 4.0 mm 5 = 5.0 mm 6 = 6.0 mm Right hand version Clamping D1 Ordering Code H B B1 L L1 Hc Lc H1 Key Screw SEM R 1212 H3 12 12 20 88 16 12 7 20 K25 S25 3.0 SEM R 1616 H3 16 16 24 120 16 16 7 24 K25 S25 SEM R 1212 H4 12 12 20 88 16 12 7 20 K25 S25 4.0 SEM R 1616 H4 16 16 24 120 16 16 7 24 K25 S25 SEM R 1212 H5 12 12 20 88 16 12 7 20 K25 S25 5.0 SEM R 1616 H5 16 16 24 120 16 16 7 24 K25 S25 SEM R 1212 H6 12 12 20 88 16 12 7 20 K25 S25S 6.0 SEM R 1616 H6 16 16 24 120 16 16 7 24 K25 S25S A06-40
