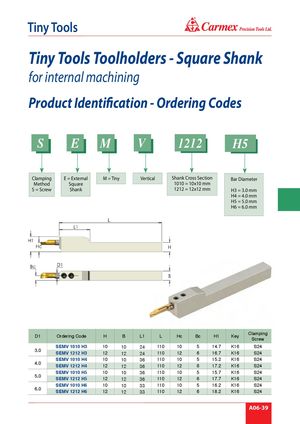

® Tiny Tools Tiny Tools Toolholders - Square Shank for internal machining Product Identification - Ordering Codes S E M V 1212 H5 Clamping E = External M = Tiny Vertical Shank Cross Section Bar Diameter Method Square 1010 = 10x10 mm S = Screw Shank 1212 = 12x12 mm H3 = 3.0 mm H4 = 4.0 mm H5 = 5.0 mm H6 = 6.0 mm Clamping D1 Ordering Code H B L1 L Hc Bc H1 Key Screw SEMV 1010 H3 10 10 24 110 10 5 14.7 K16 S24 3.0 SEMV 1212 H3 12 12 24 110 12 6 16.7 K16 S24 SEMV 1010 H4 10 10 36 110 10 5 15.2 K16 S24 4.0 SEMV 1212 H4 12 12 36 110 12 6 17.2 K16 S24 SEMV 1010 H5 10 10 36 110 10 5 15.7 K16 S24 5.0 SEMV 1212 H5 12 12 36 110 12 6 17.7 K16 S24 SEMV 1010 H6 10 10 33 110 10 5 16.2 K16 S24 6.0 SEMV 1212 H6 12 12 33 110 12 6 18.2 K16 S24 A06-39
