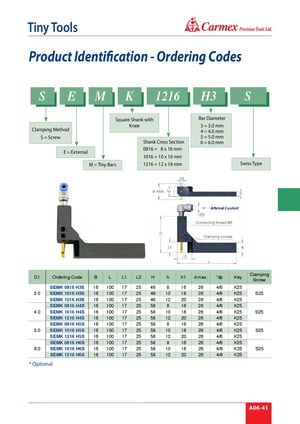

® Tiny Tools Product Identification - Ordering Codes S E M K 1216 H3 S Square Shank with Bar Diameter Knee 3 = 3.0 mm Clamping Method 4 = 4.0 mm S = Screw 5 = 5.0 mm Shank Cross Section 6 = 6.0 mm E = External 0816 = 8 x 16 mm 1016 = 10 x 16 mm M = Tiny Bars 1216 = 12 x 16 mm Swiss Type Connecting thread M6 Clamping screws D1 Ordering Code B L L1 L2 H h h1 d max. *dp Key ClampingScrew SEMK 0816 H3S 16 100 17 25 46 8 16 26 4/6 K25 3.0 SEMK 1016 H3S 16 100 17 25 46 10 18 26 4/6 K25 S25 SEMK 1216 H3S 16 100 17 25 46 12 20 26 4/6 K25 SEMK 0816 H4S 16 100 17 25 58 8 16 26 4/6 K25 4.0 SEMK 1016 H4S 16 100 17 25 58 10 18 26 4/6 K25 S25 SEMK 1216 H4S 16 100 17 25 58 12 20 26 4/6 K25 SEMK 0816 H5S 16 100 17 25 58 8 16 26 4/6 K25 5.0 SEMK 1016 H5S 16 100 17 25 58 10 18 26 4/6 K25 S25 SEMK 1216 H5S 16 100 17 25 58 12 20 26 4/6 K25 SEMK 0816 H6S 16 100 17 25 58 8 16 26 4/6 K25 6.0 SEMK 1016 H6S 16 100 17 25 58 10 18 26 4/6 K25 S25 SEMK 1216 H6S 16 100 17 25 58 12 20 26 4/6 K25 * Optional A06-41
