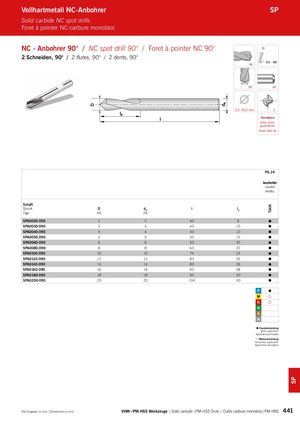

D dA TiAlN SP l Vollhartmetall NC-Anbohrer SP Solid carbide NC spot drills Foret à pointer NC-carbure monobloc NC - Anbohrer 90° / NC spot drill 90° / Foret à pointer NC 90° 2 Schneiden, 90° / 2 flutes, 90° / 2 dents, 90° h6 450 – 488 90° h6 2,0 -20,0 mm 2 l2 Feinstkorn Ultra micro granulation Grain ultra fin PG 24 beschichtet coated revêtu Schaft Shank D dA l l2 Tige h6 h6 SPA0020-090 2 2 40 8  SPA0030-090 3 3 40 10  SPA0040-090 4 4 40 12  SPA0050-090 5 5 50 15  SPA0060-090 6 6 50 20  SPA0080-090 8 8 63 22  SPA0100-090 10 10 74 23  SPA0120-090 12 12 83 25  SPA0140-090 14 14 83 26  SPA0160-090 16 16 92 28  SPA0180-090 18 18 92 30  SPA0200-090 20 20 104 30      Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 441
