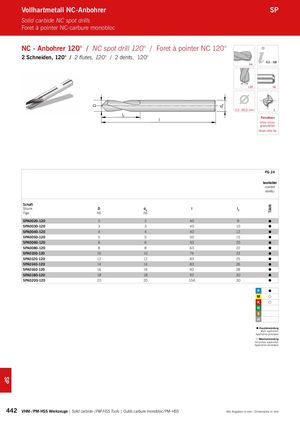

Каталог ARNO монолитный осевой инструмент - страница 442

Vollhartmetall NC-Anbohrer SP Solid carbide NC spot drills Foret à pointer NC-carbure monobloc NC - Anbohrer 120° / NC spot drill 120° / Foret à pointer NC 120° 2 Schneiden, 120° / 2 flutes, 120° / 2 dents, 120° 450 – 488 h6 120° h6 dA D 2,0 -20,0 mm 2 l2 Feinstkorn l Ultra micro granulation Grain ultra fin PG 24 beschichtet coated revêtu Schaft TiAlN Shank D dA l l2 Tige h6 h6 SPA0020-120 2 2 40 8  SPA0030-120 3 3 40 10  SPA0040-120 4 4 40 12  SPA0050-120 5 5 50 15  SPA0060-120 6 6 50 20  SPA0080-120 8 8 63 22  SPA0100-120 10 10 74 23  SPA0120-120 12 12 83 25  SPA0140-120 14 14 83 26  SPA0160-120 16 16 92 28  SPA0180-120 18 18 92 30  SPA0200-120 20 20 104 30      Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire SP 442 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm
