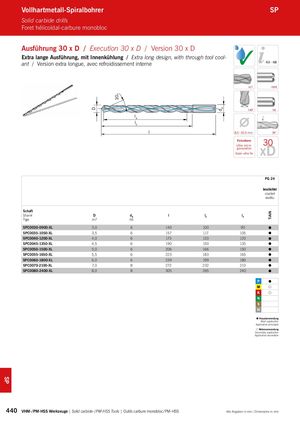

D 30° dA TiAlN Vollhartmetall-Spiralbohrer SP Solid carbide drills Foret hélicoïdal-carbure monobloc Ausführung 30 x D / Execution 30 x D / Version 30 x D Extra lange Ausführung, mit Innenkühlung / Extra long design, with through tool cool-ant/Version extra longue, avec refroidissement interne✓ 450 – 488 m7 HAK 140° h6 l4 l2 l 8,0 - 32,0 mm 30° FeinstkornUltra microgranulationGrain ultra finx3D0 PG 24 beschichtet coated revêtu Schaft Shank D dA l l2 l4 Tige m7 h6 SPC0030-0900-XL 3,0 6 140 100 90  SPC0035-1050-XL 3,5 6 157 117 105  SPC0040-1200-XL 4,0 6 173 133 120  SPC0045-1350-XL 4,5 6 190 150 135  SPC0050-1500-XL 5,0 6 206 166 150  SPC0055-1650-XL 5,5 6 223 183 165  SPC0060-1800-XL 6,0 6 239 199 180  SPC0070-2100-XL 7,0 8 272 232 210  SPC0080-2400-XL 8,0 8 305 265 240      Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 440 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm SP
