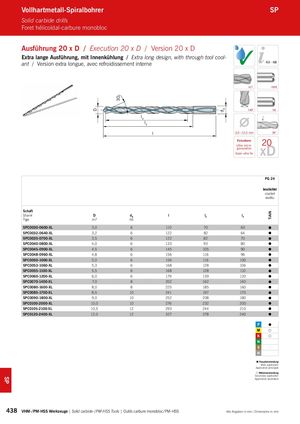

D 30° dA TiAlN Vollhartmetall-Spiralbohrer SP Solid carbide drills Foret hélicoïdal-carbure monobloc Ausführung 20 x D / Execution 20 x D / Version 20 x D Extra lange Ausführung, mit Innenkühlung / Extra long design, with through tool cool-ant/Version extra longue, avec refroidissement interne✓ 450 – 488 m7 HAK 140° h6 l4 l2 l 3,0 -12,0 mm 30° FeinstkornUltra microgranulationGrain ultra finx2D0 PG 24 beschichtet coated revêtu Schaft Shank D dA l l2 l4 Tige m7 h6 SPC0030-0600-XL 3,0 6 110 70 60  SPC0032-0640-XL 3,2 6 122 82 64  SPC0035-0700-XL 3,5 6 122 82 70  SPC0040-0800-XL 4,0 6 133 93 80  SPC0045-0900-XL 4,5 6 145 105 90  SPC0048-0960-XL 4,8 6 156 116 96  SPC0050-1000-XL 5,0 6 156 116 100  SPC0053-1060-XL 5,3 6 168 128 106  SPC0055-1100-XL 5,5 6 168 128 110  SPC0060-1200-XL 6,0 6 179 139 120  SPC0070-1400-XL 7,0 8 202 162 140  SPC0080-1600-XL 8,0 8 225 185 160  SPC0085-1700-XL 8,5 10 241 197 170  SPC0090-1800-XL 9,0 10 252 208 180  SPC0100-2000-XL 10,0 10 276 232 200  SPC0105-2100-XL 10,5 12 293 244 210  SPC0120-2400-XL 12,0 12 327 278 240      Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 438 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm SP
