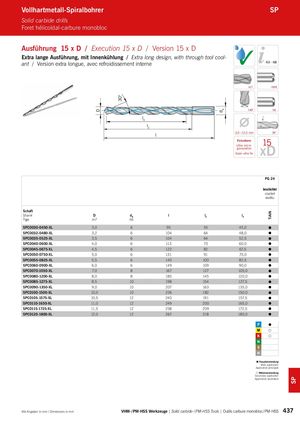

Каталог ARNO монолитный осевой инструмент - страница 437

D 30° dA TiAlN SP Vollhartmetall-Spiralbohrer SP Solid carbide drills Foret hélicoïdal-carbure monobloc Ausführung 15 x D / Execution 15 x D / Version 15 x D Extra lange Ausführung, mit Innenkühlung / Extra long design, with through tool cool-ant/Version extra longue, avec refroidissement interne✓ 450 – 488 m7 HAK 140° h6 l4 l2 l 3,0 -12,0 mm 30° FeinstkornUltra microgranulationGrain ultra finx1D5 PG 24 beschichtet coated revêtu Schaft Shank D dA l l2 l4 Tige m7 h6 SPC0030-0450-XL 3,0 6 95 55 45,0  SPC0032-0480-XL 3,2 6 104 64 48,0  SPC0035-0525-XL 3,5 6 104 64 52,5  SPC0040-0600-XL 4,0 6 113 73 60,0  SPC0045-0675-XL 4,5 6 122 82 67,5  SPC0050-0750-XL 5,0 6 131 91 75,0  SPC0055-0825-XL 5,5 6 140 100 82,5  SPC0060-0900-XL 6,0 6 149 109 90,0  SPC0070-1050-XL 7,0 8 167 127 105,0  SPC0080-1200-XL 8,0 8 185 145 120,0  SPC0085-1275-XL 8,5 10 198 154 127,5  SPC0090-1350-XL 9,0 10 207 163 135,0  SPC0100-1500-XL 10,0 10 226 182 150,0  SPC0105-1575-XL 10,5 12 240 191 157,5  SPC0110-1650-XL 11,0 12 249 200 165,0  SPC0115-1725-XL 11,5 12 258 209 172,5  SPC0120-1800-XL 12,0 12 267 218 180,0      Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 437
