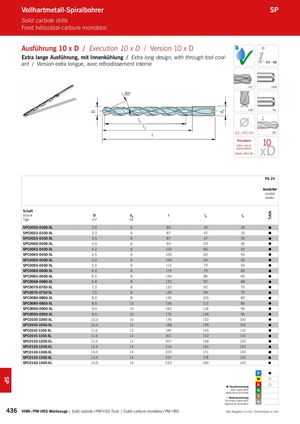

Каталог ARNO монолитный осевой инструмент - страница 436

D dA TiAlN Vollhartmetall-Spiralbohrer SP Solid carbide drills Foret hélicoïdal-carbure monobloc Ausführung 10 x D / Execution 10 x D / Version 10 x D Extra lange Ausführung, mit Innenkühlung / Extra long design, with through tool cool-ant/Version extra longue, avec refroidissement interne✓ 450 – 488 m7 HAK 30° 140° h6 l4 l2 l 3,0 -14,0 mm 30° FeinstkornUltra microgranulationGrain ultra fin x10D PG 24 beschichtet coated revêtu Schaft Shank D dA l l2 l4 Tige m7 h6 SPC0030-0300-XL 3,0 6 80 40 30  SPC0033-0330-XL 3,3 6 87 47 33  SPC0035-0350-XL 3,5 6 87 47 35  SPC0040-0400-XL 4,0 6 93 53 40  SPC0042-0420-XL 4,2 6 100 60 42  SPC0045-0450-XL 4,5 6 100 60 45  SPC0050-0500-XL 5,0 6 106 66 50  SPC0055-0550-XL 5,5 6 113 73 55  SPC0060-0600-XL 6,0 6 119 79 60  SPC0065-0650-XL 6,5 8 126 86 65  SPC0068-0680-XL 6,8 8 132 92 68  SPC0070-0700-XL 7,0 8 132 92 70  SPC0075-0750-XL 7,5 8 139 99 75  SPC0080-0800-XL 8,0 8 145 105 80  SPC0085-0850-XL 8,5 10 156 112 85  SPC0090-0900-XL 9,0 10 162 118 90  SPC0095-0950-XL 9,5 10 170 126 95  SPC0100-1000-XL 10,0 10 176 132 100  SPC0105-1050-XL 10,5 12 188 139 105  SPC0110-1100-XL 11,0 12 195 145 110  SPC0115-1150-XL 11,5 12 201 152 115  SPC0120-1200-XL 12,0 12 207 158 120  SPC0125-1250-XL 12,5 14 214 165 125  SPC0130-1300-XL 13,0 14 220 171 130  SPC0135-1350-XL 13,5 14 227 178 135  SPC0140-1400-XL 14,0 14 233 184 140     Hauptanwendung  Main application Application principale  Nebenanwendung Secondary application Application secondaire 436 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm SP
