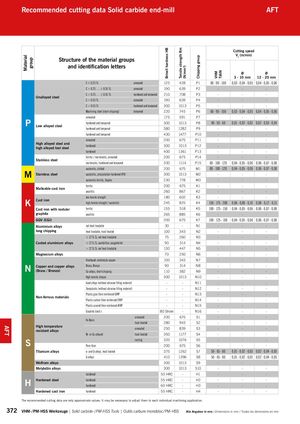

Recommended cutting data Solid carbide end-mill AFT Brinell hardness HB Tensile strength Rm Cutting speed Vc (m/min) Material Chipping group Structure of the material groups group and identification letters (N/mm²) TiAlN Ø Ø VHM 3 - 10 mm 12 - 20 mm C ≤ 0.25 % annealed 125 428 P1 80 - 90 - 100 0,03 - 0,04 - 0,05 0,04 - 0,05 - 0,06 C > 0.25 … ≤ 0.55 % annealed 190 639 P2 - - - C > 0.25 … ≤ 0.55 % hardened and tempered 210 708 P3 - - - Unalloyed steel C > 0.55 % annealed 190 639 P4 - - - C > 0.55 % hardened and tempered 300 1013 P5 - - - Machining steel (short-chipping) tempered 220 745 P6 80 - 90 - 100 0,03 - 0,04 - 0,05 0,04 - 0,05 - 0,06 annealed 175 591 P7 - - - P Low alloyed steel hardened and tempered hardened and tempered 300 380 1013 1282 P8 P9 40 - 50 - 60 - 0,01 - 0,02 - 0,03 - 0,02 - 0,03 - 0,04 - hardened and tempered 430 1477 P10 - - - annealed 200 675 P11 - - - High alloyed steel and high alloyed tool steel hardened 300 1013 P12 - - - hardened 400 1361 P13 - - - ferritic / martensitic, annealed 200 675 P14 - - - Stainless steel martensitic, hardened and tempered 330 1114 P15 80 - 100 - 120 0,04 - 0,05 - 0,06 0,06 - 0,07 - 0,08 austenitic, chilled 200 675 M1 80 - 100 - 120 0,04 - 0,05 - 0,06 0,06 - 0,07 - 0,08 M Stainless steel austenitic, precipitation-hardened (PH) austenitic-ferritic, Duplex 300 230 1013 778 M2 M3 - - - - - - ferritic 200 675 K1 - - - Malleable cast iron pearlitic 260 867 K2 - - - low tensile strength 180 602 K3 - - - K Cast iron high tensile strength / austenitic 245 825 K4 150 - 175 - 200 0,06 - 0,08 - 0,10 0,08 - 0,12 - 0,15 Cast iron with nodular ferritic 155 518 K5 100 - 125 - 150 0,04 - 0,05 - 0,06 0,06 - 0,07 - 0,08 graphite pearlitic 265 885 K6 - - - GGV (CGI) 200 675 K7 100 - 125 - 150 0,04 - 0,05 - 0,06 0,06 - 0,07 - 0,08 Aluminium alloys not heat treatable 30 - N1 - - - long chipping heat treatable, heat treated 100 343 N2 - - - ≤ 12 % Si, not heat treatable 75 260 N3 - - - Casted aluminium alloys ≤ 12 % Si, aushärtbar, ausgehärtet 90 314 N4 - - - > 12 % Si, not heat treatable 130 447 N5 - - - Magnesium alloys 70 250 N6 - - - Unalloyed, elektrolyte copper 100 343 N7 - - - N Copper and copper alloys Brass, Bronze 90 314 N8 - - - (Brass / Bronze) Cu-alloys, short-chipping 110 382 N9 - - - High-tensile, Ampco 300 1013 N10 - - - Lead alloys (without abrasive filling material) - - N11 - - - Duroplastic (without abrasive filling material) - - N12 - - - Plastic glas fibre reinforced GFRP - - N13 - - - Non-ferrous materials Plastic carbon fibre reinforced CFRP - - N14 - - - Plastic aramid fibre reinforced AFRP - - N15 - - - Graphite (tech.) 80 Shore - N16 - - - annealed 200 675 S1 - - - Fe-Basis heat treated 280 943 S2 - - - High temperature AFT resistant alloys annealed 250 839 S3 - - - Ni- or Co-alloyed heat treated 350 1177 S4 - - - S casting 320 1076 S5 - - - Pure titan 200 675 S6 - - - Titanium alloys α- and β-alloys, heat treated 375 1262 S7 50 - 65 - 80 0,01 - 0,02 - 0,03 0,02 - 0,04 - 0,05 β-alloys 410 1396 S8 50 - 65 - 80 0,01 - 0,02 - 0,03 0,02 - 0,04 - 0,05 Wolfram alloys 300 1013 S9 - - - Molybdän alloys 300 1013 S10 - - - hardened 50 HRC - H1 - - - H Hardened steel hardened 55 HRC - H2 - - - hardened 60 HRC - H3 - - - Hardened cast iron hardened 55 HRC - H4 - - - The recommended cutting data are only approximate values. It may be necessary to adjust them to each individual machining application. 372 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm
