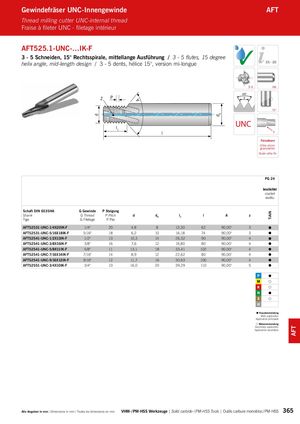

d A dA TiAlN AFT l Gewindefräser UNC-Innengewinde AFT Thread milling cutter UNC-internal thread Fraise à fileter UNC - filetage intérieur AFT525.1-UNC-…IK-F 3 - 5 Schneiden, 15° Rechtsspirale, mittellange Ausführung / 3 - 5 flutes, 15 degreehelix angle, mid-length design/3 - 5 dents, hélice 15°, version mi-longue✓371 – 373 3-5 HA 60° Z P P 15° l1 UNC F Feinstkorn Ultra micro granulation Grain ultra fin PG 24 beschichtet coated revêtu Schaft DIN 6535HA G Gewinde P Steigung Shank G Thread P Pitch d dA l1 l A z Tige G Filetage P Pas AFT52531-UNC-1/4X20IK-F 1/4“ 20 4,8 8 13,30 62 90,00° 3  AFT52531-UNC-5/16X18IK-F 5/16“ 18 6,2 10 16,18 74 90,00° 3  AFT52541-UNC-1/2X13IK-F 1/2“ 13 10,3 14 26,32 90 90,00° 4  AFT52541-UNC-3/8X16IK-F 3/8“ 16 7,6 12 19,80 80 90,00° 4  AFT52541-UNC-5/8X11IK-F 5/8“ 11 13,1 18 33,41 102 90,00° 4  AFT52541-UNC-7/16X14IK-F 7/16“ 14 8,9 12 22,62 80 90,00° 4  AFT52541-UNC-9/16X12IK-F 9/16“ 12 11,7 16 30,63 100 90,00° 4  AFT52551-UNC-3/4X10IK-F 3/4“ 10 16,0 20 39,29 110 90,00° 5        Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 365
