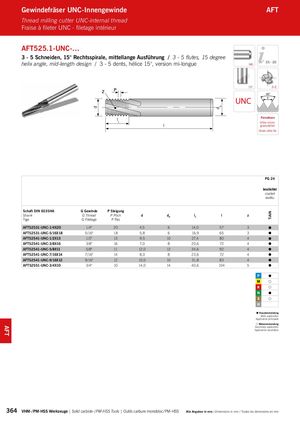

d d A TiAlN l Gewindefräser UNC-Innengewinde AFT Thread milling cutter UNC-internal thread Fraise à fileter UNC - filetage intérieur AFT525.1-UNC-… 3 - 5 Schneiden, 15° Rechtsspirale, mittellange Ausführung / 3 - 5 flutes, 15 degree helix angle, mid-length design / 3 - 5 dents, hélice 15°, version mi-longue HA 371 – 373 15° 3-5 60° UNC P l Feinstkorn 1 Ultra micro granulation Grain ultra fin PG 24 beschichtet coated revêtu Schaft DIN 6535HA G Gewinde P Steigung Shank G Thread P Pitch d dA l1 l z Tige G Filetage P Pas AFT52531-UNC-1/4X20 1/4“ 20 4,5 6 14,0 57 3  AFT52531-UNC-5/16X18 5/16“ 18 5,8 6 16,9 65 3  AFT52541-UNC-1/2X13 1/2“ 13 9,5 10 27,4 80 4  AFT52541-UNC-3/8X16 3/8“ 16 7,0 8 20,6 72 4  AFT52541-UNC-5/8X11 5/8“ 11 12,0 12 34,6 92 4  AFT52541-UNC-7/16X14 7/16“ 14 8,0 8 23,6 72 4  AFT52541-UNC-9/16X12 9/16“ 12 10,0 10 31,8 83 4  AFT52551-UNC-3/4X10 3/4“ 10 14,0 14 40,6 104 5        Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 364 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm AFT
