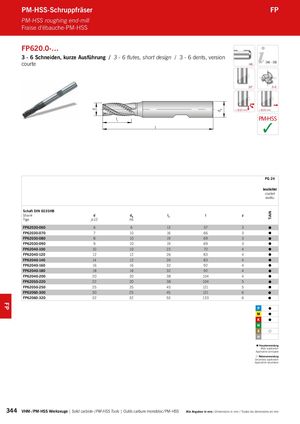

PM-HSS-Schruppfräser FP PM-HSS roughing end-mill Fraise d‘ébauche-PM-HSS FP620.0-… 3 - 6 Schneiden, kurze Ausführung / 3 - 6 flutes, short design / 3 - 6 dents, version 346 – 350 courte HB 30° 3-6 d <Ø 20 mm >Ø 20 mm dA l1 PM-HSS l ✓ PG 24 beschichtet coated revêtu Schaft DIN 6535HB TiAlN Shank d dA l1 l z Tige js12 h6 FP62030-060 6 6 13 57 3  FP62030-070 7 10 16 66 3  FP62030-080 8 10 19 69 3  FP62030-090 9 10 19 69 3  FP62040-100 10 10 22 72 4  FP62040-120 12 12 26 83 4  FP62040-140 14 12 26 83 4  FP62040-160 16 16 32 92 4  FP62040-180 18 16 32 92 4  FP62040-200 20 20 38 104 4  FP62050-220 22 20 38 104 5  FP62050-250 25 25 45 121 5  FP62060-300 30 25 45 121 6  FP62060-320 32 32 53 133 6  FP      Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 344 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm
