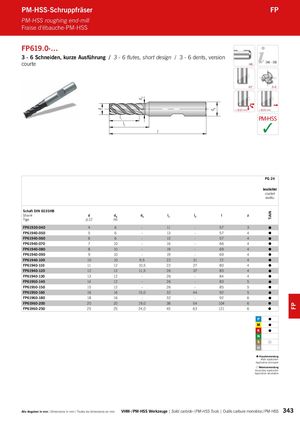

Каталог ARNO монолитный осевой инструмент - страница 343

d d3 dA TiAlN FP l PM-HSS-Schruppfräser FP PM-HSS roughing end-mill Fraise d‘ébauche-PM-HSS FP619.0-… 3 - 6 Schneiden, kurze Ausführung / 3 - 6 flutes, short design / 3 - 6 dents, version courte HB 346 – 350 45° 3-6 <Ø 20 mm >Ø 20 mm l1 PM-HSS l2 ✓ PG 24 beschichtet coated revêtu Schaft DIN 6535HB Shank d dA d3 l1 l2 l z Tige js12 h6 FP61930-040 4 6 - 11 - 57 3  FP61940-050 5 6 - 13 - 57 4  FP61940-060 6 6 - 13 - 57 4  FP61940-070 7 10 - 16 - 66 4  FP61940-080 8 10 - 19 - 69 4  FP61940-090 9 10 - 19 - 69 4  FP61940-100 10 10 9,5 22 31 72 4  FP61940-110 11 12 10,5 22 27 80 4  FP61940-120 12 12 11,5 26 37 83 4  FP61940-130 13 12 - 26 - 84 4  FP61950-140 14 12 - 26 - 83 5  FP61950-150 15 12 - 26 - 85 5  FP61950-160 16 16 15,0 32 44 92 5  FP61960-180 18 16 - 32 - 92 6  FP61960-200 20 20 19,0 38 54 104 6  FP61960-250 25 25 24,0 45 63 121 6       Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 343
