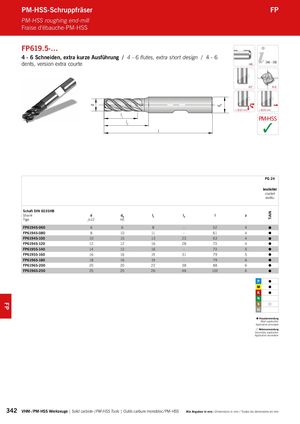

PM-HSS-Schruppfräser FP PM-HSS roughing end-mill Fraise d‘ébauche-PM-HSS FP619.5-… 4 - 6 Schneiden, extra kurze Ausführung / 4 - 6 flutes, extra short design / 4 - 6 346 – 350 dents, version extra courte HB 45° 4-6 dA d <Ø 20 mm >Ø 20 mm l1 l2 PM-HSS l ✓ PG 24 beschichtet coated revêtu Schaft DIN 6535HB TiAlN Shank d dA l1 l2 l z Tige js12 h6 FP61945-060 6 6 8 - 52 4  FP61945-080 8 10 11 - 61 4  FP61945-100 10 10 13 23 63 4  FP61945-120 12 12 16 28 73 4  FP61955-140 14 12 16 - 73 5  FP61955-160 16 16 19 31 79 5  FP61965-180 18 16 19 - 79 6  FP61965-200 20 20 22 38 88 6  FP61965-250 25 25 26 46 102 6      FP  Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 342 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm
