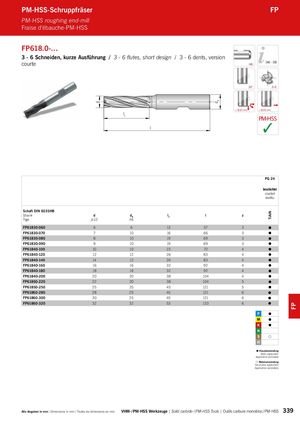

Каталог ARNO монолитный осевой инструмент - страница 339

d dA TiAlN FP l PM-HSS-Schruppfräser FP PM-HSS roughing end-mill Fraise d‘ébauche-PM-HSS FP618.0-… 3 - 6 Schneiden, kurze Ausführung / 3 - 6 flutes, short design / 3 - 6 dents, version courte HB 346 – 350 30° 3-6 <Ø 20 mm >Ø 20 mm l1 PM-HSS ✓ PG 24 beschichtet coated revêtu Schaft DIN 6535HB Shank d dA l1 l z Tige js12 h6 FP61830-060 6 6 13 57 3  FP61830-070 7 10 16 66 3  FP61830-080 8 10 19 69 3  FP61830-090 9 10 19 69 3  FP61840-100 10 10 22 72 4  FP61840-120 12 12 26 83 4  FP61840-140 14 12 26 83 4  FP61840-160 16 16 32 92 4  FP61840-180 18 16 32 92 4  FP61840-200 20 20 38 104 4  FP61850-220 22 20 38 104 5  FP61850-250 25 25 45 121 5  FP61860-280 28 25 45 121 6  FP61860-300 30 25 45 121 6  FP61860-320 32 32 53 133 6       Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 339
