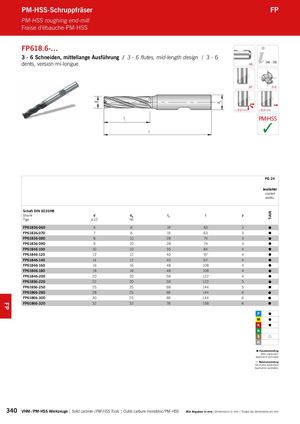

Каталог ARNO монолитный осевой инструмент - страница 340

d dA TiAlN PM-HSS-Schruppfräser FP PM-HSS roughing end-mill Fraise d‘ébauche-PM-HSS FP618.6-… 3 - 6 Schneiden, mittellange Ausführung / 3 - 6 flutes, mid-length design / 3-6 dents, version mi-longue HB 346 – 350 30° 3-6 <Ø 20 mm >Ø 20 mm l1 PM-HSS l ✓ PG 24 beschichtet coated revêtu Schaft DIN 6535HB Shank d dA l1 l z Tige js12 h6 FP61836-060 6 6 19 63 3  FP61836-070 7 6 19 63 3  FP61836-080 8 10 28 74 3  FP61836-090 9 10 28 74 3  FP61846-100 10 10 35 84 4  FP61846-120 12 12 40 97 4  FP61846-140 14 12 40 97 4  FP61846-160 16 16 48 108 4  FP61846-180 18 16 48 108 4  FP61846-200 20 20 58 122 4  FP61856-220 22 20 58 122 5  FP61856-250 25 25 68 144 5  FP61866-280 28 25 68 144 6  FP61866-300 30 25 68 144 6  FP61866-320 32 32 78 158 6       Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 340 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm FP
