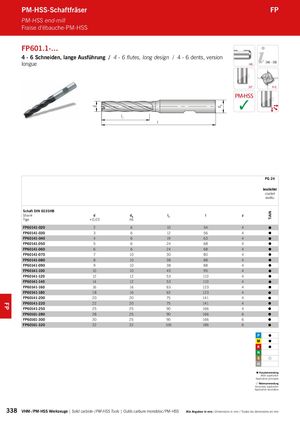

Каталог ARNO монолитный осевой инструмент - страница 338

d dA TiAlN l PM-HSS-Schaftfräser FP PM-HSS end-mill Fraise d‘ébauche-PM-HSS FP601.1-… 4 - 6 Schneiden, lange Ausführung / 4 - 6 flutes, long design / 4 - 6 dents, version longue HB 346 – 350 30° 4-6 PM-HSS ✓ l1 PG 24 beschichtet coated revêtu Schaft DIN 6535HB Shank d dA l1 l z Tige +0,03 h6 FP60141-020 2 6 10 54 4  FP60141-030 3 6 12 56 4  FP60141-040 4 6 19 63 4  FP60141-050 5 6 24 68 4  FP60141-060 6 6 24 68 4  FP60141-070 7 10 30 80 4  FP60141-080 8 10 38 88 4  FP60141-090 9 10 38 88 4  FP60141-100 10 10 45 95 4  FP60141-120 12 12 53 110 4  FP60141-140 14 12 53 110 4  FP60141-160 16 16 63 123 4  FP60141-180 18 16 63 123 4  FP60141-200 20 20 75 141 4  FP60141-220 22 20 75 141 4  FP60141-250 25 25 90 166 4  FP60161-280 28 25 90 166 6  FP60161-300 30 25 90 166 6  FP60161-320 32 32 106 186 6       Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 338 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm FP
