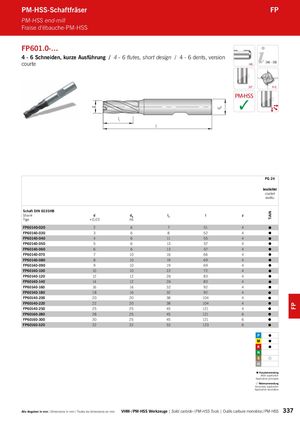

Каталог ARNO монолитный осевой инструмент - страница 337

d dA TiAlN FP l PM-HSS-Schaftfräser FP PM-HSS end-mill Fraise d‘ébauche-PM-HSS FP601.0-… 4 - 6 Schneiden, kurze Ausführung / 4 - 6 flutes, short design / 4 - 6 dents, version courte HB 346 – 350 30° 4-6 PM-HSS ✓ l1 PG 24 beschichtet coated revêtu Schaft DIN 6535HB Shank d dA l1 l z Tige +0,03 h6 FP60140-020 2 6 7 51 4  FP60140-030 3 6 8 52 4  FP60140-040 4 6 11 55 4  FP60140-050 5 6 13 57 4  FP60140-060 6 6 13 57 4  FP60140-070 7 10 16 66 4  FP60140-080 8 10 19 69 4  FP60140-090 9 10 19 69 4  FP60140-100 10 10 22 72 4  FP60140-120 12 12 26 83 4  FP60140-140 14 12 26 83 4  FP60140-160 16 16 32 92 4  FP60140-180 18 16 32 92 4  FP60140-200 20 20 38 104 4  FP60140-220 22 20 38 104 4  FP60140-250 25 25 45 121 4  FP60160-280 28 25 45 121 6  FP60160-300 30 25 45 121 6  FP60160-320 32 32 53 133 6       Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 337
