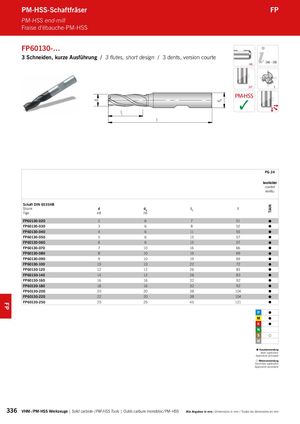

Каталог ARNO монолитный осевой инструмент - страница 336

d dA TiAlN l PM-HSS-Schaftfräser FP PM-HSS end-mill Fraise d‘ébauche-PM-HSS FP60130-… 3 Schneiden, kurze Ausführung / 3 flutes, short design / 3 dents, version courte HB 346 – 350 30° 3 PM-HSS ✓ l1 PG 24 beschichtet coated revêtu Schaft DIN 6535HB Shank d dA l1 l Tige e8 h6 FP60130-020 2 6 7 51  FP60130-030 3 6 8 52  FP60130-040 4 6 11 55  FP60130-050 5 6 13 57  FP60130-060 6 6 13 57  FP60130-070 7 10 16 66  FP60130-080 8 10 19 69  FP60130-090 9 10 19 69  FP60130-100 10 10 22 72  FP60130-120 12 12 26 83  FP60130-140 14 12 26 83  FP60130-160 16 16 32 92  FP60130-180 18 16 32 92  FP60130-200 20 20 38 104  FP60130-220 22 20 38 104  FP60130-250 25 25 45 121       Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 336 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm FP
