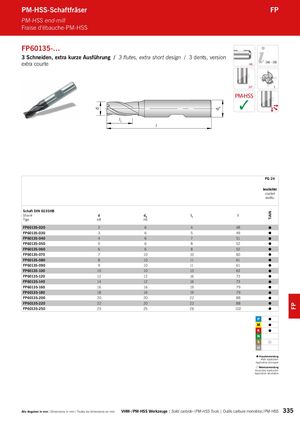

Каталог ARNO монолитный осевой инструмент - страница 335

d dA TiAlN FP l PM-HSS-Schaftfräser FP PM-HSS end-mill Fraise d‘ébauche-PM-HSS FP60135-… 3 Schneiden, extra kurze Ausführung / 3 flutes, extra short design / 3 dents, version extra courte HB 346 – 350 30° 3 PM-HSS ✓ l1 PG 24 beschichtet coated revêtu Schaft DIN 6535HB Shank d dA l1 l Tige e8 h6 FP60135-020 2 6 4 48  FP60135-030 3 6 5 49  FP60135-040 4 6 7 51  FP60135-050 5 6 8 52  FP60135-060 6 6 8 52  FP60135-070 7 10 10 60  FP60135-080 8 10 11 61  FP60135-090 9 10 11 61  FP60135-100 10 10 13 63  FP60135-120 12 12 16 73  FP60135-140 14 12 16 73  FP60135-160 16 16 19 79  FP60135-180 18 16 19 79  FP60135-200 20 20 22 88  FP60135-220 22 20 22 88  FP60135-250 25 25 26 102       Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 335
