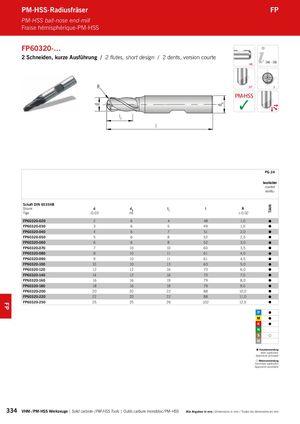

Каталог ARNO монолитный осевой инструмент - страница 334

d dA TiAlN l PM-HSS-Radiusfräser FP PM-HSS ball-nose end-mill Fraise hémisphérique-PM-HSS FP60320-… 2 Schneiden, kurze Ausführung / 2 flutes, short design / 2 dents, version courte HB 346 – 350 R 30° 2 PM-HSS ✓ l1 PG 24 beschichtet coated revêtu Schaft DIN 6535HB Shank d dA l1 l R Tige -0,03 h6 ±0,02 FP60320-020 2 6 4 48 1,0  FP60320-030 3 6 5 49 1,5  FP60320-040 4 6 7 51 2,0  FP60320-050 5 6 8 52 2,5  FP60320-060 6 6 8 52 3,0  FP60320-070 7 10 10 60 3,5  FP60320-080 8 10 11 61 4,0  FP60320-090 9 10 11 61 4,5  FP60320-100 10 10 13 63 5,0  FP60320-120 12 12 16 73 6,0  FP60320-140 14 12 16 73 7,0  FP60320-160 16 16 19 79 8,0  FP60320-180 18 16 19 79 9,0  FP60320-200 20 20 22 88 10,0  FP60320-220 22 20 22 88 11,0  FP60320-250 25 25 26 102 12,5       Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 334 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm FP
