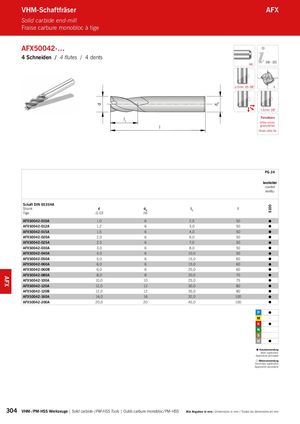

Каталог ARNO монолитный осевой инструмент - страница 304

d dA S100 VHM-Schaftfräser AFX Solid carbide end-mill Fraise carbure monobloc à tige AFX50042-… 4 Schneiden / 4 flutes / 4 dents HA 310 – 325 ≥3mm 35-38° 4 <3mm 38° l1 FeinstkornUltra micro l granulation Grain ultra fin PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l Tige -0,03 h6 AFX50042-010A 1,0 6 2,5 50  AFX50042-012A 1,2 6 3,0 50  AFX50042-015A 1,5 6 4,0 50  AFX50042-020A 2,0 6 6,0 50  AFX50042-025A 2,5 6 7,0 50  AFX50042-030A 3,0 6 8,0 50  AFX50042-040A 4,0 6 10,0 50  AFX50042-050A 5,0 6 15,0 60  AFX50042-060A 6,0 6 15,0 60  AFX50042-060B 6,0 6 25,0 60  AFX50042-080A 8,0 8 20,0 70  AFX50042-100A 10,0 10 25,0 75  AFX50042-120A 12,0 12 30,0 80  AFX50042-120B 12,0 12 35,0 80  AFX50042-160A 16,0 16 32,0 100  AFX50042-200A 20,0 20 45,0 100      Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 304 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm AFX
