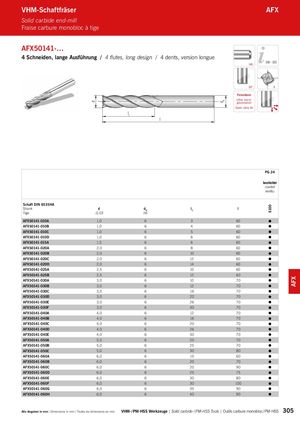

Каталог ARNO монолитный осевой инструмент - страница 305

d dA S100 AFX l VHM-Schaftfräser AFX Solid carbide end-mill Fraise carbure monobloc à tige AFX50141-… 4 Schneiden, lange Ausführung / 4 flutes, long design / 4 dents, version longue HA 310 – 325 30° 4 Feinstkorn Ultra micro granulation Grain ultra fin l1 PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l Tige -0,03 h6 AFX50141-010A 1,0 6 3 60  AFX50141-010B 1,0 6 4 60  AFX50141-010C 1,0 6 5 60  AFX50141-010D 1,0 6 6 60  AFX50141-015A 1,5 6 6 60  AFX50141-020A 2,0 6 8 60  AFX50141-020B 2,0 6 10 60  AFX50141-020C 2,0 6 12 60  AFX50141-020D 2,0 6 14 60  AFX50141-025A 2,5 6 10 60  AFX50141-025B 2,5 6 12 60  AFX50141-030A 3,0 6 10 70  AFX50141-030B 3,0 6 12 70  AFX50141-030C 3,0 6 16 70  AFX50141-030D 3,0 6 20 70  AFX50141-030E 3,0 6 26 70  AFX50141-030F 3,0 6 30 70  AFX50141-040A 4,0 6 12 70  AFX50141-040B 4,0 6 16 70  AFX50141-040C 4,0 6 20 70  AFX50141-040D 4,0 6 26 70  AFX50141-040E 4,0 6 30 70  AFX50141-050A 5,0 6 20 70  AFX50141-050B 5,0 6 25 70  AFX50141-050C 5,0 6 30 80  AFX50141-060A 6,0 6 15 60  AFX50141-060B 6,0 6 20 70  AFX50141-060C 6,0 6 20 90  AFX50141-060D 6,0 6 25 75  AFX50141-060E 6,0 6 30 80  AFX50141-060F 6,0 6 30 100  AFX50141-060G 6,0 6 35 90  AFX50141-060H 6,0 6 40 90  Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 305
