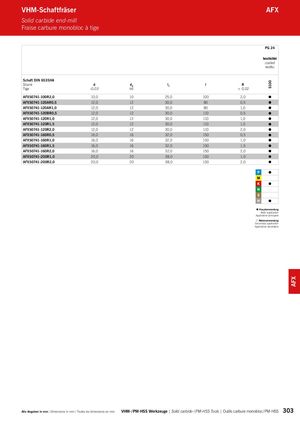

Каталог ARNO монолитный осевой инструмент - страница 303

S100 AFX VHM-Schaftfräser AFX Solid carbide end-mill Fraise carbure monobloc à tige PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l R Tige -0,03 h6 ± 0,02 AFX50741-100R2,0 10,0 10 25,0 100 2,0  AFX50741-120AR0,5 12,0 12 30,0 80 0,5  AFX50741-120AR1,0 12,0 12 30,0 80 1,0  AFX50741-120BR0,5 12,0 12 30,0 110 0,5  AFX50741-120R1,0 12,0 12 30,0 110 1,0  AFX50741-120R1,5 12,0 12 30,0 110 1,5  AFX50741-120R2,0 12,0 12 30,0 110 2,0  AFX50741-160R0,5 16,0 16 32,0 150 0,5  AFX50741-160R1,0 16,0 16 32,0 150 1,0  AFX50741-160R1,5 16,0 16 32,0 150 1,5  AFX50741-160R2,0 16,0 16 32,0 150 2,0  AFX50741-200R1,0 20,0 20 38,0 150 1,0  AFX50741-200R2,0 20,0 20 38,0 150 2,0      Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 303
