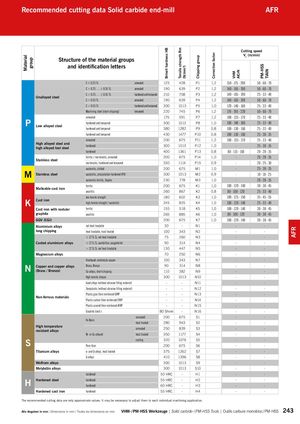

Recommended cutting data Solid carbide end-mill AFR

aless HBth RmpctorCuttin Vc (g speed m/min)
ri upStructureof the material groupsnngoufa
te oiiardtregronS
Ma grand iientification lettersell hile s m²)pingectiNHS N
BrinTens (N/mChipCorrVHM AlCrPM- TiAl
C ≤ 0.25 % annealed125428P11,2150 - 175 - 20050 - 60 - 70
C > 0.25 … ≤ 0.55 % annealed190639P21,2140 - 165 - 19050 - 60 - 70
C > 0.25 … ≤ 0.55 % hardened and tempered 210708P31,2140 - 165 - 19025 - 33 - 40
Unalloyed steelC > 0.55 % annealed190639P41,2140 - 165 - 19050 - 60 - 70
C > 0.55 % hardened and tempered 3001013P51,0120 - 140 - 16025 - 33 - 40
Machining steel (short-chipping) tempered220745P61,2170 - 195 - 22050 - 60 - 70
annealed175591P71,2100 - 135 - 17025 - 33 - 40
PLow alloyed steelhardened and tempered hardened and tempered300 3801013 1282P8 P91,0 0,8100 - 140 - 180 100 - 130 - 16025 - 33 - 40 25 - 33 - 40
hardened and tempered4301477P100,8100 - 130 - 16025 - 30 - 35
annealed200675P111,2100 - 135 - 17025 - 33 - 40
High alloyed steel and high alloyed tool steelhardened3001013P121,0-25 - 30 - 35
hardened4001361P130,880 - 115 - 15020 - 28 - 35
ferritic / martensitic, annealed200675P141,0-20 - 28 - 35
Stainless steelmartensitic, hardened and tempered3301114P150,9-20 - 25 - 30
austenitic, chilled200675M11,0-25 - 30 - 35
MStainless steelaustenitic, precipitation-hardened (PH)3001013M20,9-10 - 18 - 25
austenitic-ferritic, Duplex230778M31,0-20 - 28 - 35
ferritic200675K11,0100 - 120 - 14030 - 38 - 45
Malleable cast ironpearlitic260867K20,880 - 100 - 12025 - 33 - 40
Ct ilow tensile strength180602K31,0100 - 125 - 15035 - 45 - 55
Kas ronhigh tensile strength / austenitic245825K41,0100 - 120 - 14025 - 33 - 40
Cast iron with nodularferritic155518K51,0100 - 120 - 14030 - 38 - 45
graphitepearlitic265885K61,080 - 100 - 12030 - 38 - 45
GGV (CGI)200675K71,0100 - 120 - 14030 - 38 - 45
Aluminium alloysnot heat treatable30-N1--
long chippingheat treatable, heat treated100343N2--
≤ 12 % Si, not heat treatable75260N3--
Casted aluminium alloys≤ 12 % Si, aushärtbar, ausgehärtet90314N4--
> 12 % Si, not heat treatable130447N5--
Magnesium alloys70250N6--
Unalloyed, elektrolyte copper100343N7--
Copper and copper alloysBrass, Bronze90314N8--
N(Brass / Bronze)Cu-alloys, short-chipping110382N9--
High-tensile, Ampco3001013N10--
Lead alloys (without abrasive filling material)--N11--
i Duroplastic (without abrasive filling material)--N12--
Non-ferrous materialsPlastic glas fibre reinforced GFRP i--N13--
Plastic carbon fibre reinforced CFRP--N14--
Plastic aramid fibre reinforced AFRP--N15--
Graphite (tech.)80 Shore-N16--
annealed200675S1--
Fe-Basis heat treated280943S2--
High temperatureannealed250839S3--
resistant alloysNi- or Co-alloyed heat treated3501177S4--
castin3201076S5--
Sg Pure titan200675S6--
Titanium alloysα- and β-alloys, heat treated3751262S7--
β-alloys4101396S8--
Wolfram alloys3001013S9--
Molybdän alloys3001013S10--
hardened50 HRC-H1--
HHardened steelhardened55 HRC-H2--
Hardened cast ironhardened hardened60 HRC 55 HRC- -H3 H4- -- -
