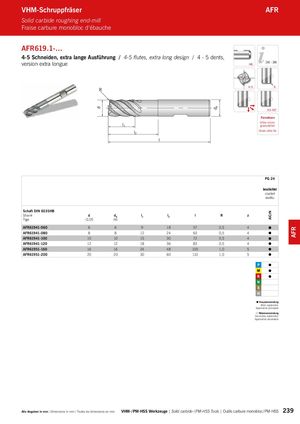

Каталог ARNO монолитный осевой инструмент - страница 239

d dA AlCrN AFR l VHM-Schruppfräser AFR Solid carbide roughing end-mill Fraise carbure monobloc d‘ébauche AFR619.1-… 4-5 Schneiden, extra lange Ausführung / 4-5 flutes, extra long design / 4 - 5 dents, version extra longue HB 242 – 246 R 4-5 R 43- 46° Feinstkorn l1 Ultra microgranulation l2 Grain ultra fin PG 24 beschichtet coated revêtu Schaft DIN 6535HB Shank d dA l1 l2 l R z Tige -0,05 h6 AFR61941-060 6 6 9 18 57 0,5 4  AFR61941-080 8 8 12 24 63 0,5 4  AFR61941-100 10 10 15 30 72 0,5 4  AFR61941-120 12 12 18 36 83 0,5 4  AFR61951-160 16 16 24 48 100 1,0 5  AFR61951-200 20 20 30 60 110 1,0 5      Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 239
