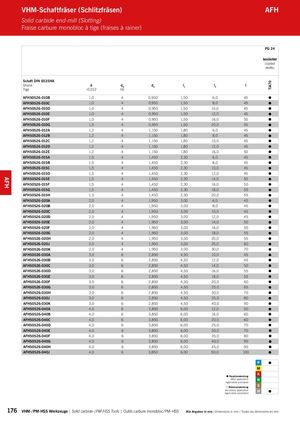

PG 24 beschichtet coated revêtu Schaft DIN 6535HA
| Shank | d | d | d l | l | l | ||
| Tige | -0,012 | h6A | 3 1 | 2 | |||
| AFH50526-010B | 1,0 | 4 | 0,950 | 1,50 | 6,0 | 45 | |
| AFH50526-010C | 1,0 | 4 | 0,950 | 1,50 | 8,0 | 45 | |
| AFH50526-010D | 1,0 | 4 | 0,950 | 1,50 | 10,0 | 45 | |
| AFH50526-010E | 1,0 | 4 | 0,950 | 1,50 | 12,0 | 45 | |
| AFH50526-010F | 1,0 | 4 | 0,950 | 1,50 | 16,0 | 50 | |
| AFH50526-010G | 1,0 | 4 | 0,950 | 1,50 | 20,0 | 55 | |
| AFH50526-012A | 1,2 | 4 | 1,150 | 1,80 | 6,0 | 45 | |
| AFH50526-012B | 1,2 | 4 | 1,150 | 1,80 | 8,0 | 45 | |
| AFH50526-012C | 1,2 | 4 | 1,150 | 1,80 | 10,0 | 45 | |
| AFH50526-012D | 1,2 | 4 | 1,150 | 1,80 | 12,0 | 45 | |
| AFH50526-012E | 1,2 | 4 | 1,150 | 1,80 | 16,0 | 50 | |
| AFH50526-015A | 1,5 | 4 | 1,450 | 2,30 | 6,0 | 45 | |
| AFH50526-015B | 1,5 | 4 | 1,450 | 2,30 | 8,0 | 45 | |
| AFH50526-015C | 1,5 | 4 | 1,450 | 2,30 | 10,0 | 45 | |
| AFH50526-015D | 1,5 | 4 | 1,450 | 2,30 | 12,0 | 45 | |
| AFH50526-015E | 1,5 | 4 | 1,450 | 2,30 | 14,0 | 50 | |
| AFH50526-015F | 1,5 | 4 | 1,450 | 2,30 | 16,0 | 50 | |
| AFH50526-015G | 1,5 | 4 | 1,450 | 2,30 | 18,0 | 55 | |
| AFH50526-015H | 1,5 | 4 | 1,450 | 2,30 | 20,0 | 55 | |
| AFH50526-020A | 2,0 | 4 | 1,950 | 3,00 | 6,0 | 45 | |
| AFH50526-020B | 2,0 | 4 | 1,950 | 3,00 | 8,0 | 45 | |
| AFH50526-020C | 2,0 | 4 | 1,950 | 3,00 | 10,0 | 45 | |
| AFH50526-020D | 2,0 | 4 | 1,950 | 3,00 | 12,0 | 45 | |
| AFH50526-020E | 2,0 | 4 | 1,950 | 3,00 | 14,0 | 50 | |
| AFH50526-020F | 2,0 | 4 | 1,950 | 3,00 | 16,0 | 50 | |
| AFH50526-020G | 2,0 | 4 | 1,950 | 3,00 | 18,0 | 55 | |
| AFH50526-020H | 2,0 | 4 | 1,950 | 3,00 | 20,0 | 55 | |
| AFH50526-020J | 2,0 | 4 | 1,950 | 3,00 | 25,0 | 60 | |
| AFH50526-020K | 2,0 | 4 | 1,950 | 3,00 | 30,0 | 70 | |
| AFH50526-030A | 3,0 | 6 | 2,850 | 4,50 | 10,0 | 45 | |
| AFH50526-030B | 3,0 | 6 | 2,850 | 4,50 | 12,0 | 45 | |
| AFH50526-030C | 3,0 | 6 | 2,850 | 4,50 | 14,0 | 50 | |
| AFH50526-030D | 3,0 | 6 | 2,850 | 4,50 | 16,0 | 55 | |
| AFH50526-030E | 3,0 | 6 | 2,850 | 4,50 | 18,0 | 55 | |
| AFH50526-030F | 3,0 | 6 | 2,850 | 4,50 | 20,0 | 60 | |
| AFH50526-030G | 3,0 | 6 | 2,850 | 4,50 | 25,0 | 65 | |
| AFH50526-030H | 3,0 | 6 | 2,850 | 4,50 | 30,0 | 70 | |
| AFH50526-030J | 3,0 | 6 | 2,850 | 4,50 | 35,0 | 80 | |
| AFH50526-030K | 3,0 | 6 | 2,850 | 4,50 | 40,0 | 90 | |
| AFH50526-040A | 4,0 | 6 | 3,850 | 6,00 | 12,0 | 50 | |
| AFH50526-040B | 4,0 | 6 | 3,850 | 6,00 | 16,0 | 60 | |
| AFH50526-040C | 4,0 | 6 | 3,850 | 6,00 | 20,0 | 60 | |
| AFH50526-040D | 4,0 | 6 | 3,850 | 6,00 | 25,0 | 70 | |
| AFH50526-040E | 4,0 | 6 | 3,850 | 6,00 | 30,0 | 70 | |
| AFH50526-040F | 4,0 | 6 | 3,850 | 6,00 | 35,0 | 80 | |
| AFH50526-040G | 4,0 | 6 | 3,850 | 6,00 | 40,0 | 90 | |
| AFH50526-040H | 4,0 | 6 | 3,850 | 6,00 | 45,0 | 90 | |
| AFH50526-040J | 4,0 | 6 | 3,850 | 6,00 | 50,0 | 100 | |
Hauptanwendung Main application Application principale
