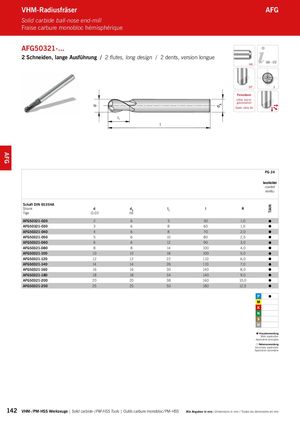

Каталог ARNO монолитный осевой инструмент - страница 142

AFG TiAlN VHM-Radiusfräser AFG Solid carbide ball-nose end-mill Fraise carbure monobloc hémisphérique AFG50321-... 2 Schneiden, lange Ausführung / 2 flutes, long design / 2 dents, version longue HA 163 – 172 30° 2 Feinstkorn Ultra micro granulation Grain ultra fin PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l R Tige -0,03 h6 AFG50321-020 2 6 5 50 1,0  AFG50321-030 3 6 8 60 1,5  AFG50321-040 4 6 8 70 2,0  AFG50321-050 5 6 10 80 2,5  AFG50321-060 6 6 12 90 3,0  AFG50321-080 8 8 14 100 4,0  AFG50321-100 10 10 18 100 5,0  AFG50321-120 12 12 22 110 6,0  AFG50321-140 14 14 26 110 7,0  AFG50321-160 16 16 30 140 8,0  AFG50321-180 18 18 34 140 9,0  AFG50321-200 20 20 38 160 10,0  AFG50321-250 25 25 50 180 12,5    Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 142 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm
