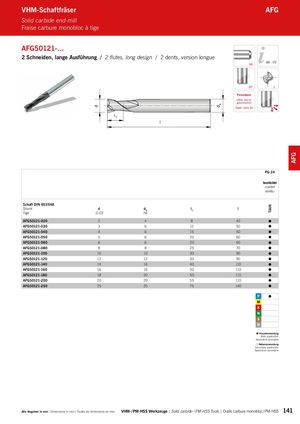

TiAlN AFG VHM-Schaftfräser AFG Solid carbide end-mill Fraise carbure monobloc à tige AFG50121-... 2 Schneiden, lange Ausführung / 2 flutes, long design / 2 dents, version longue HA 163 – 172 30° 2 Feinstkorn Ultra micro granulation Grain ultra fin PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l Tige -0,03 h6 AFG50121-020 2 4 8 40  AFG50121-030 3 6 12 50  AFG50121-040 4 6 15 50  AFG50121-050 5 6 20 60  AFG50121-060 6 6 20 60  AFG50121-080 8 8 25 70  AFG50121-100 10 10 30 90  AFG50121-120 12 12 30 90  AFG50121-140 14 16 40 110  AFG50121-160 16 16 50 110  AFG50121-180 18 20 50 110  AFG50121-200 20 20 55 110  AFG50121-250 25 25 75 140    Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 141
